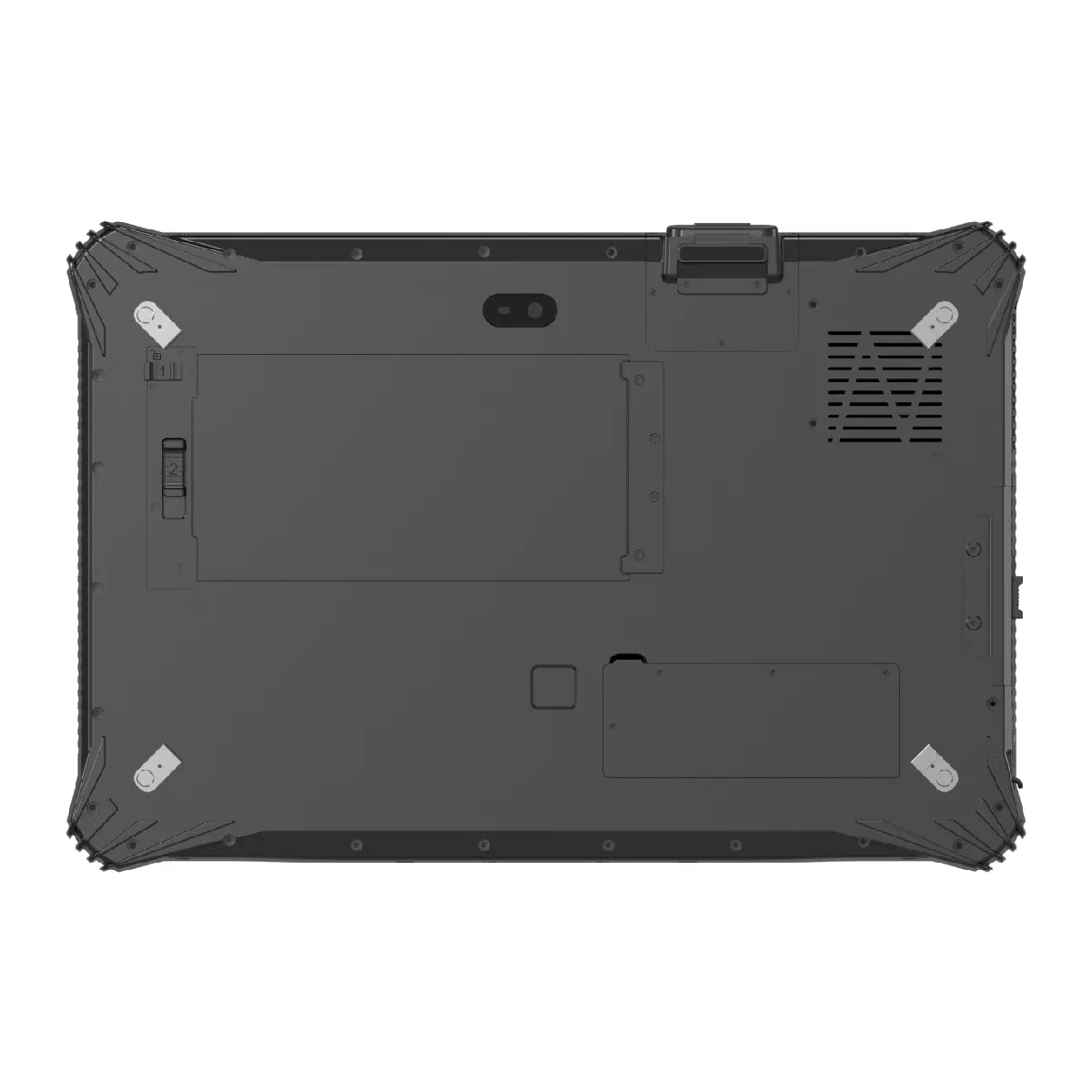

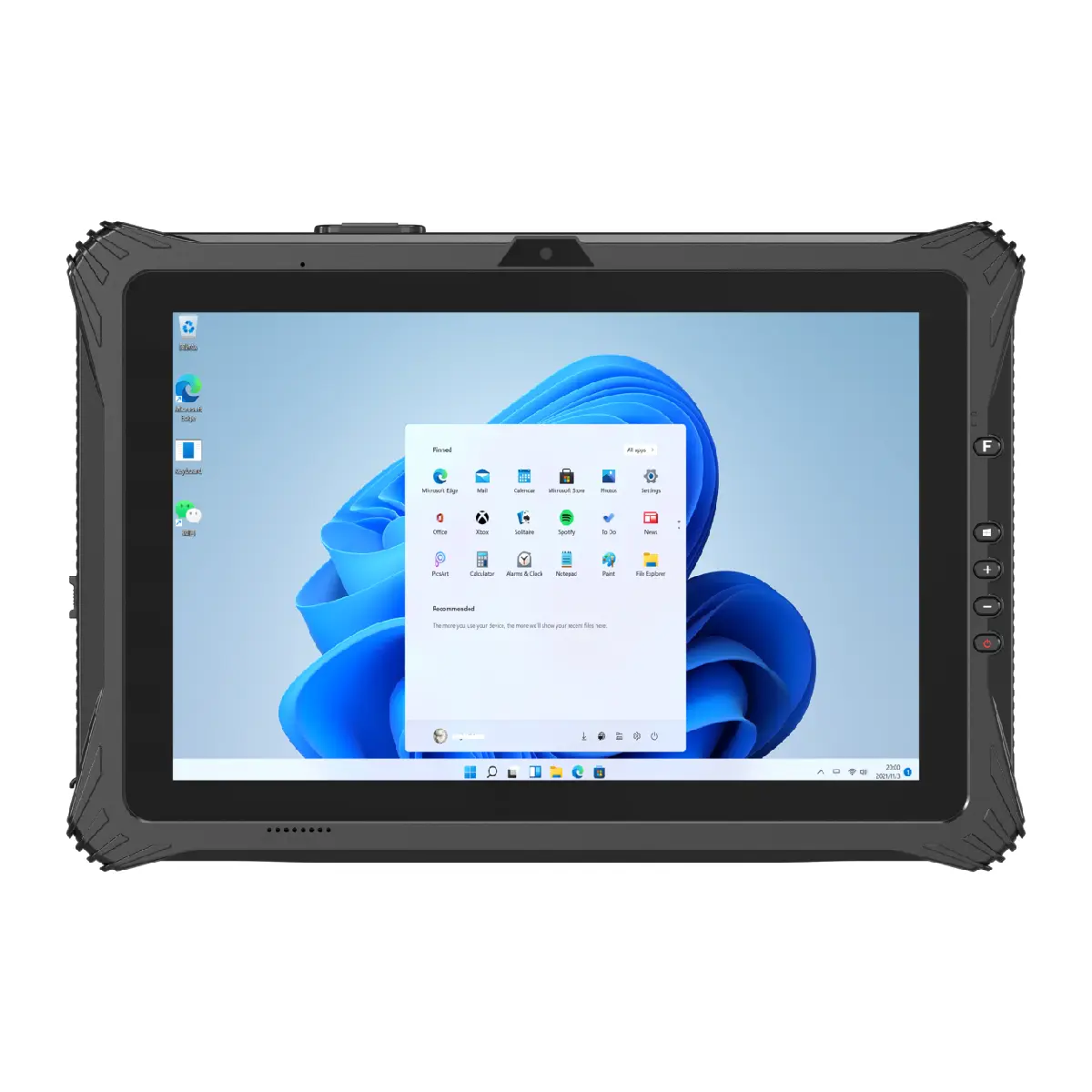

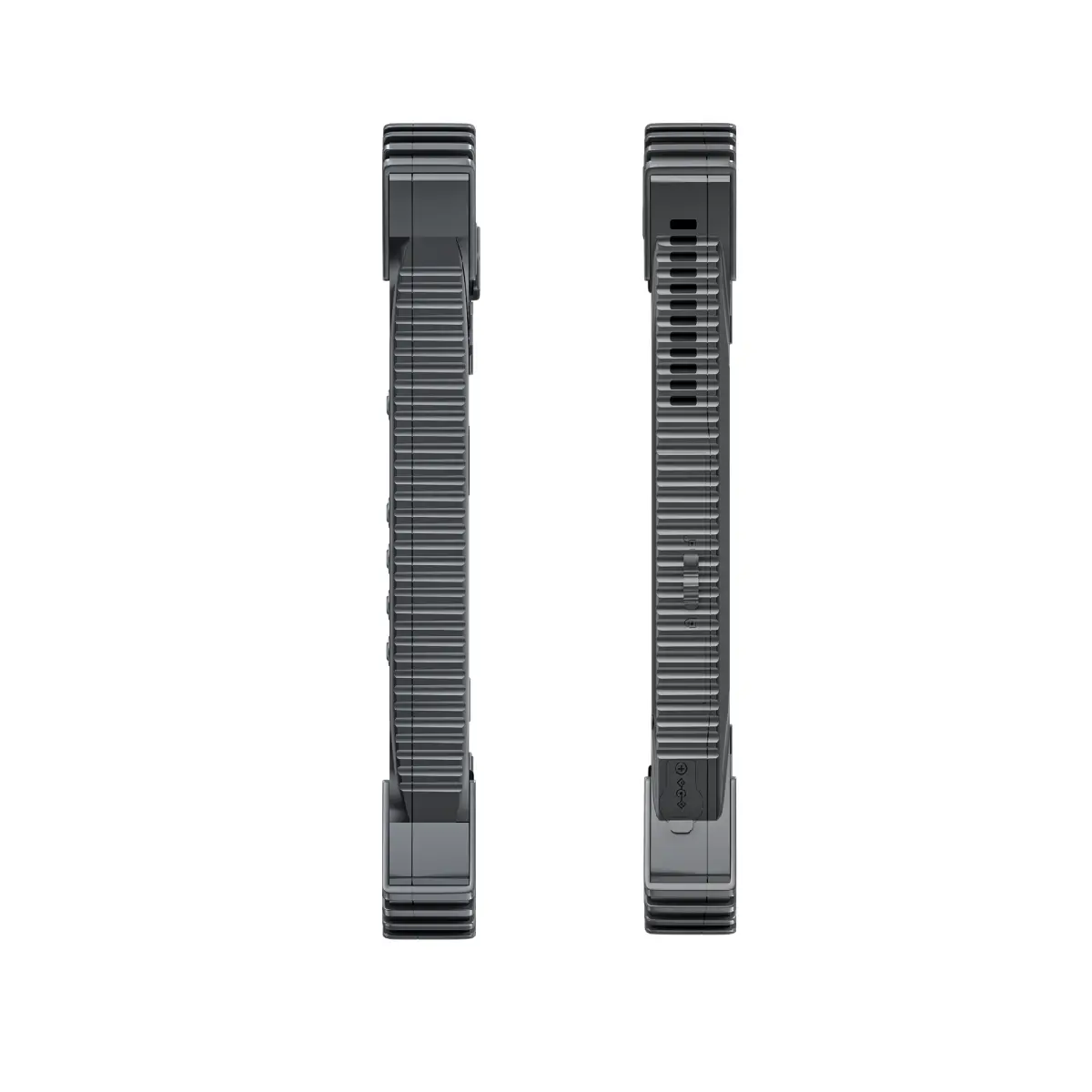

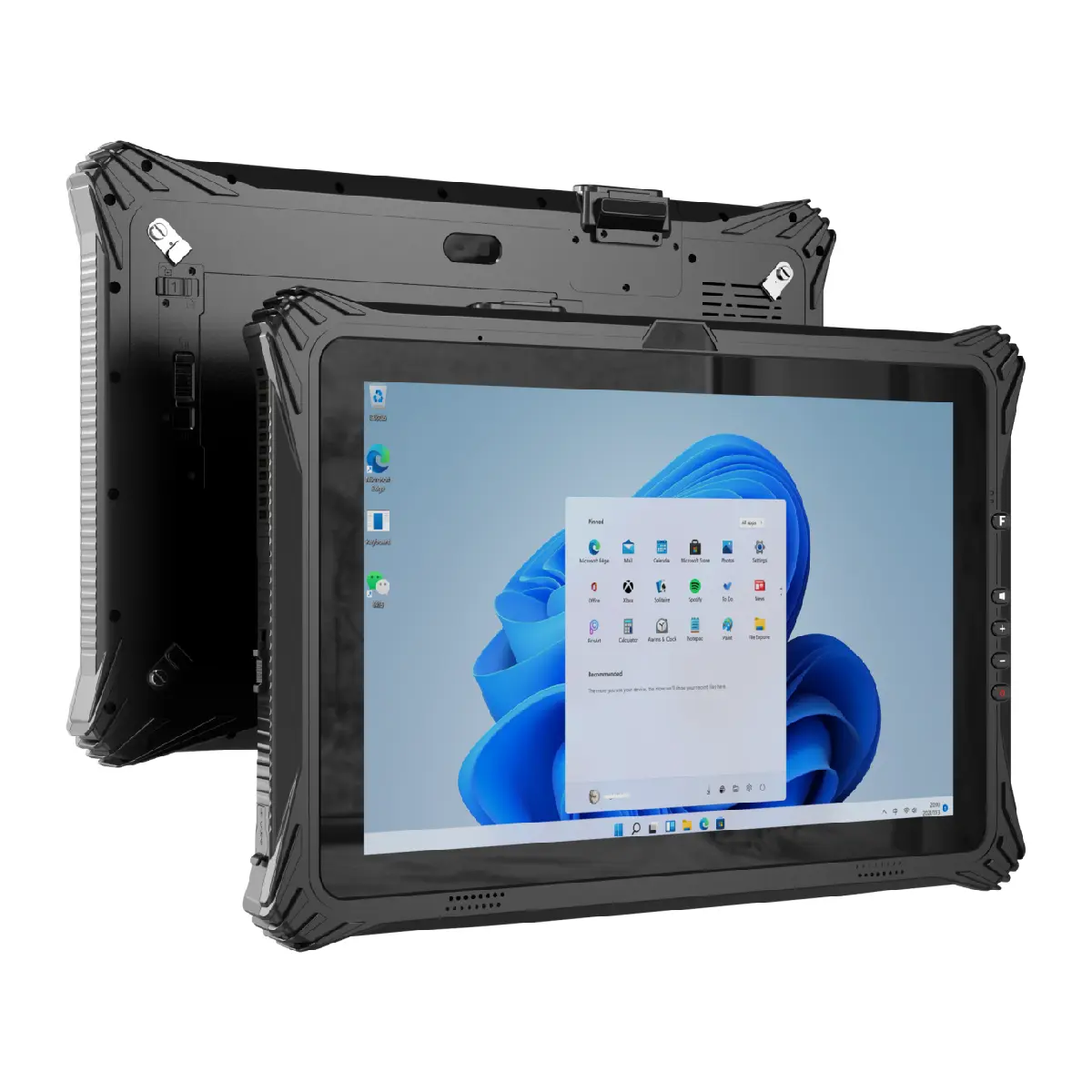

I20J
Rugged Tablet PC
- Intel® Celeron™ N5100/ N5105 processor
- Windows 11 OS
- 12.2” 650 nits HD display
- 8GB/16GB RAM + 128GB SSD
- RJ45/RS232/USB 2.0/QR code scanner 4-in-1 module
- Small + large batteries; large battery removable with hot-swap support

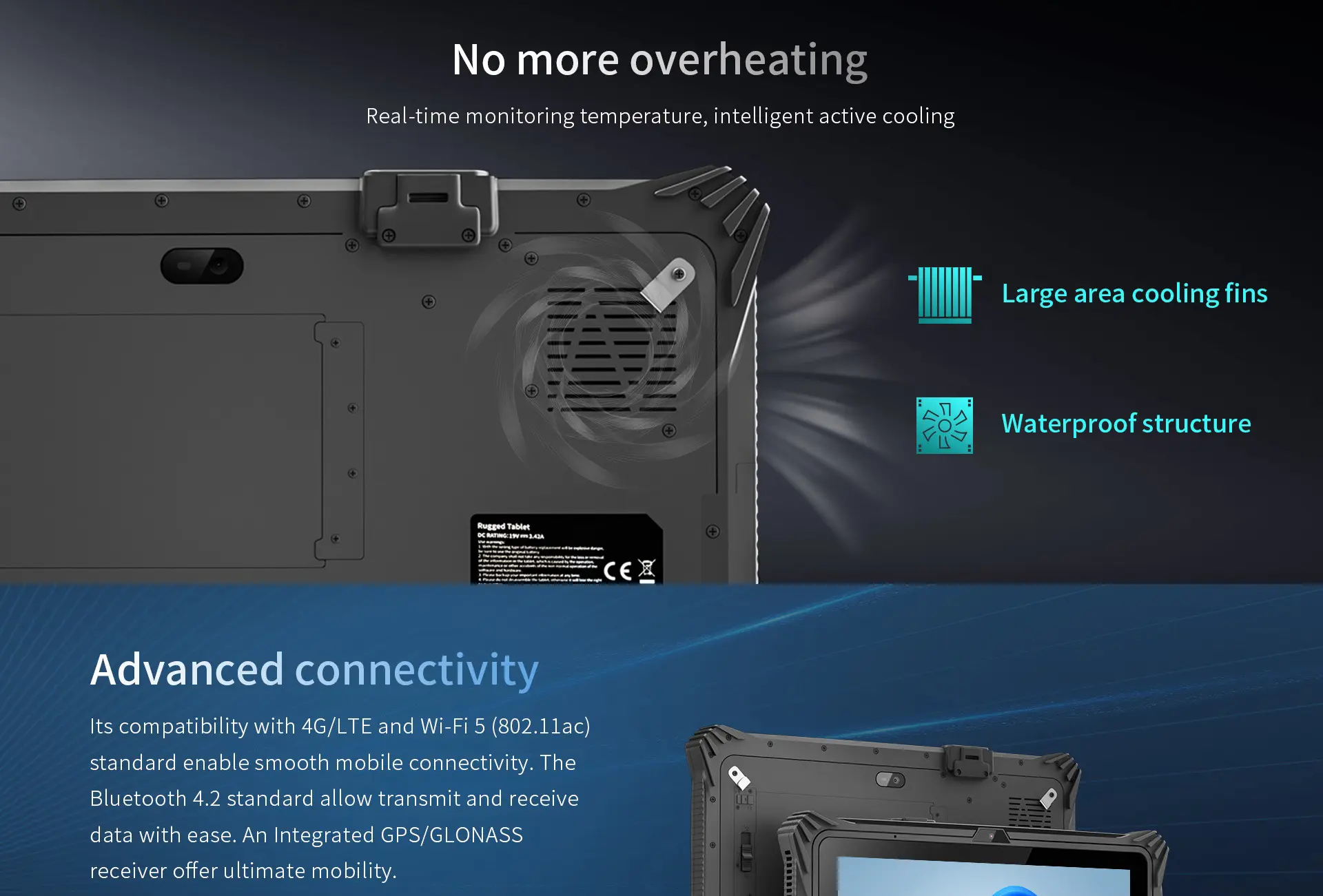

- Active cooling fan + large-area heat dissipation fins
- 4G/5G/dual-band Wi-Fi/BT 5.0 multiple communications
Specification Parameter
Basic parameters
| Dimension | 339.3 x 230.3 x 26mm |
| Weight | Device unit 1500g |
| Device Color | Black |

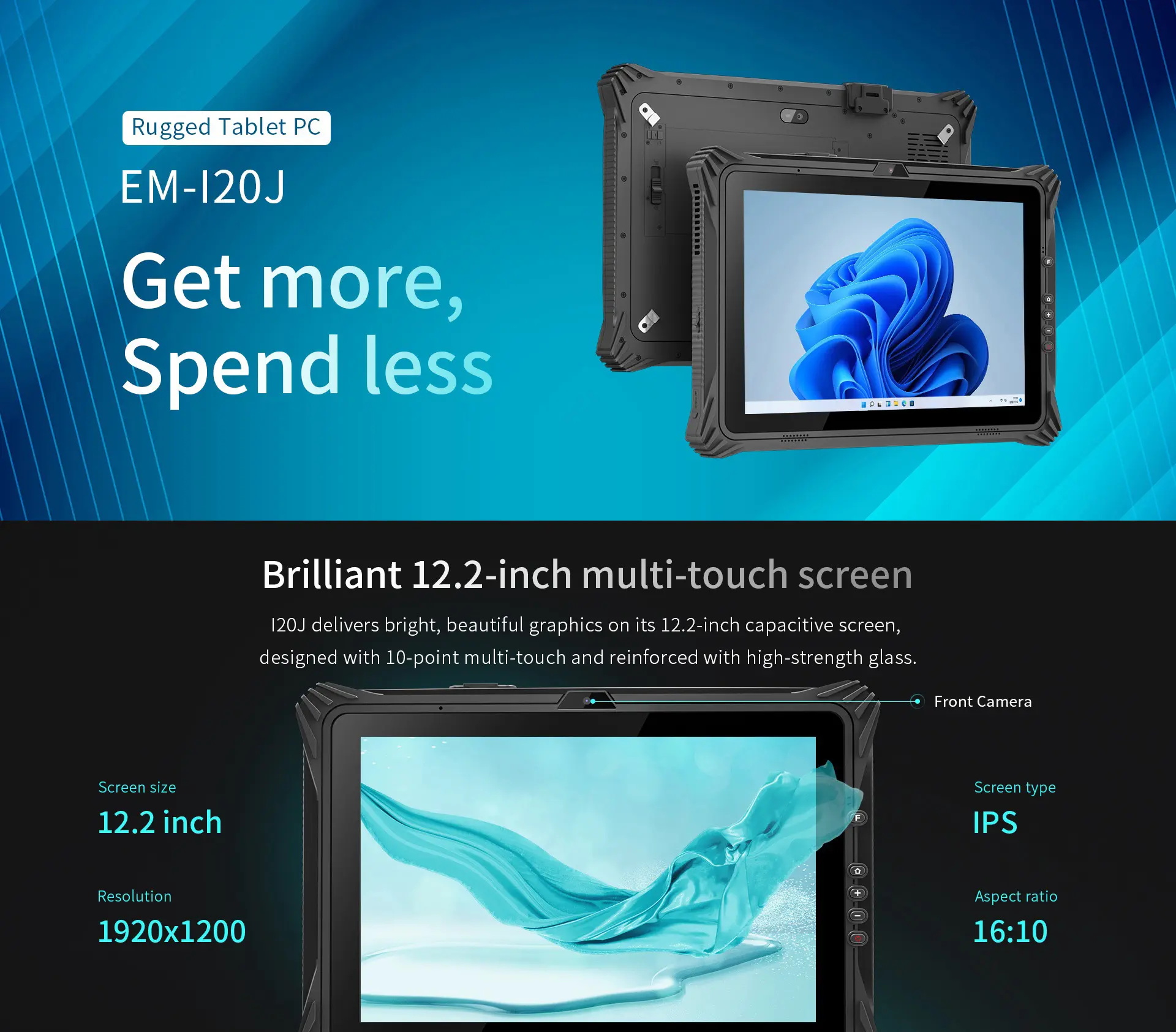

| LCD | 12.2 inch IPS 16:10，1920×1200, 650nits |
| Touch Panel | 5 point G+G capacitive touch screen |
| Camera | Front 5.0MP Rear 8.0MP |

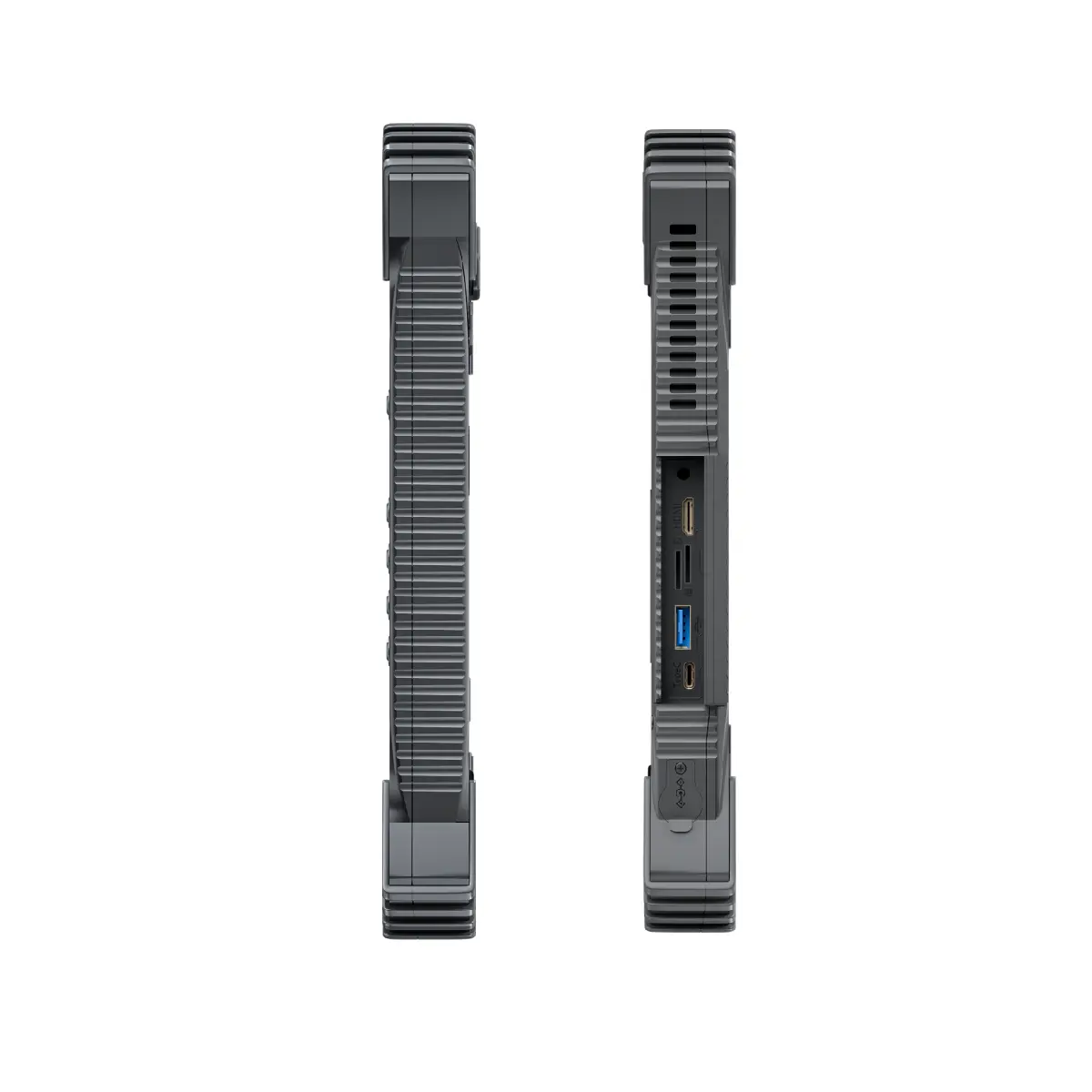

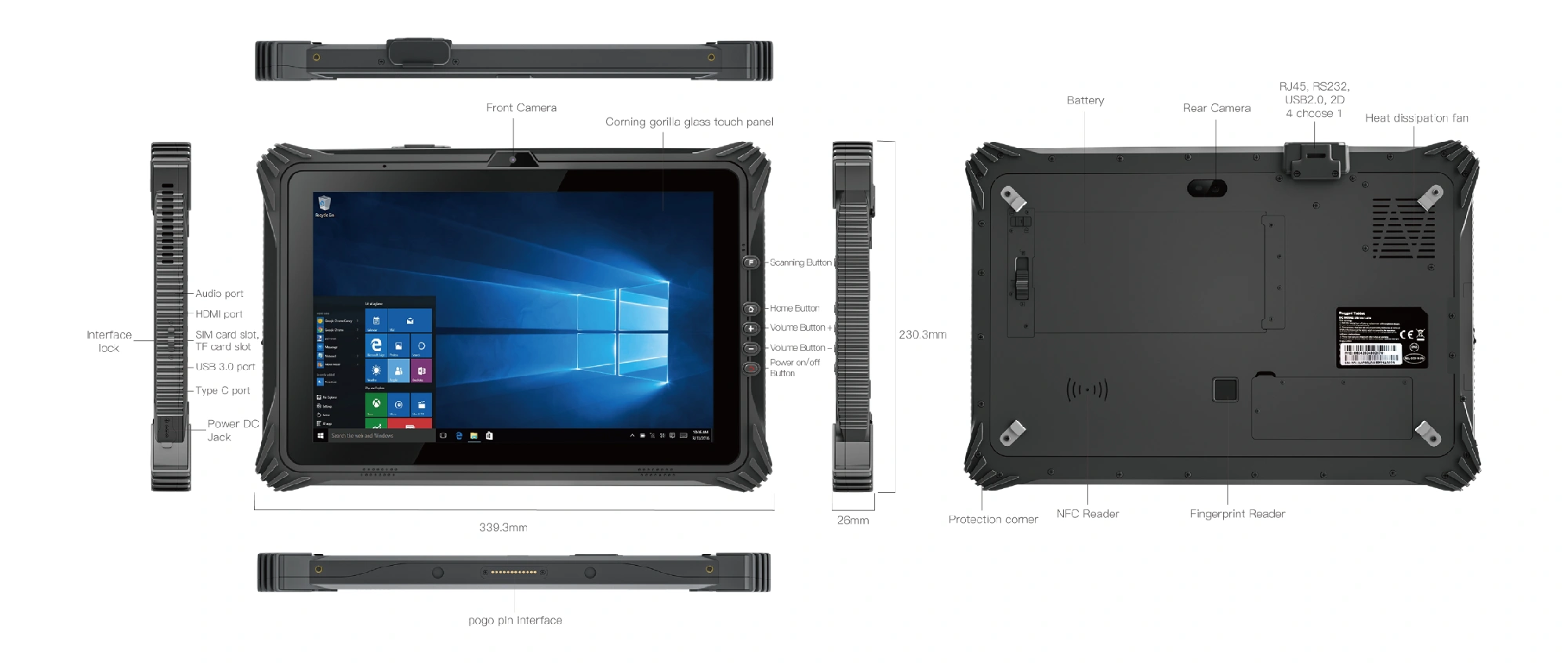

| I/O | USB 3.0 Type-A x 1, USB Type-C x 1, SIM Card x 1, TF Card x 1, HDMI 2.0a Mini x 1, 12PIN Pogo Pin x 1, Φ3.5mm standard earphone jack x 1, Φ5.5mm DC jack x 1 |
| Power | AC100V ~ 240V, 50Hz/60Hz, Output DC 19V/3.42A |
| NFC | Optional, 13.56MHz, Support ISO/IEC 14443A/B/15693/18092/mifare protocols Card reading distance: 4cm |
| Fingerprint | Standard |
Battery
| Capacity | 7.4V/860mAh |
| Type | Built-in Li-polymer battery |
Battery
| Capacity | 7.4V/6300mAh |
| Type | Removable Li-polymer battery |
| Endurance | 4hrs (50% volume sounds, 50% screen brightness, 1080P HD video display by default) |
Performance parameter
| CPU | Standard: Intel® Celeron® Processor N5100 Optional: Intel® Celeron® Processor N5105 |
| OS | Windows 11 |
| RAM | 8GB DDR/16GB DDR |
| ROM | 128GB |
Network connections
| WIFI | Wi-Fi 802.11(a/b/g/n/ac) Dual frequency 2.4G+5.8G |
| Bluetooth | BT5.0 Transmission distance: 10m |
| 5G | LTE FDD: B1/B3/B7/B8/B20 LTE TDD:B40, WCDMA: B1/B5/B8 GSM: 900/1800 Optional 5G |
| GNSS | Support GPS, Glonass |
Reliability
| Operate Temperature | -20 °C ~ 60 °C |
| Store Temperature | -30 °C ~ 70 °C |
| Humidity | 95% Non-Condensing |

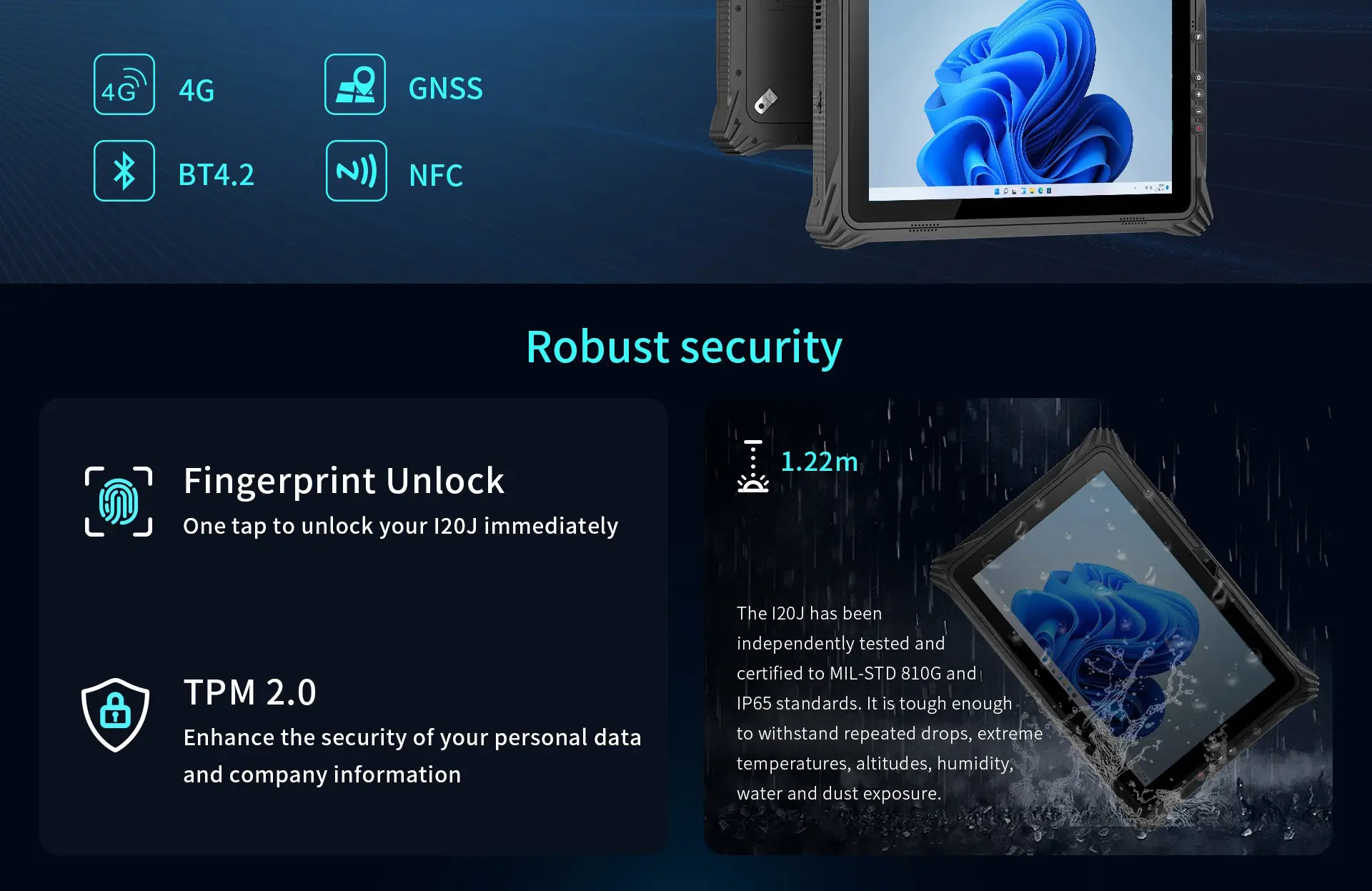

| Rugged Feature | IP65 certified, MIL-STD-810G certified |
| Drop Height | 1.22m drop |

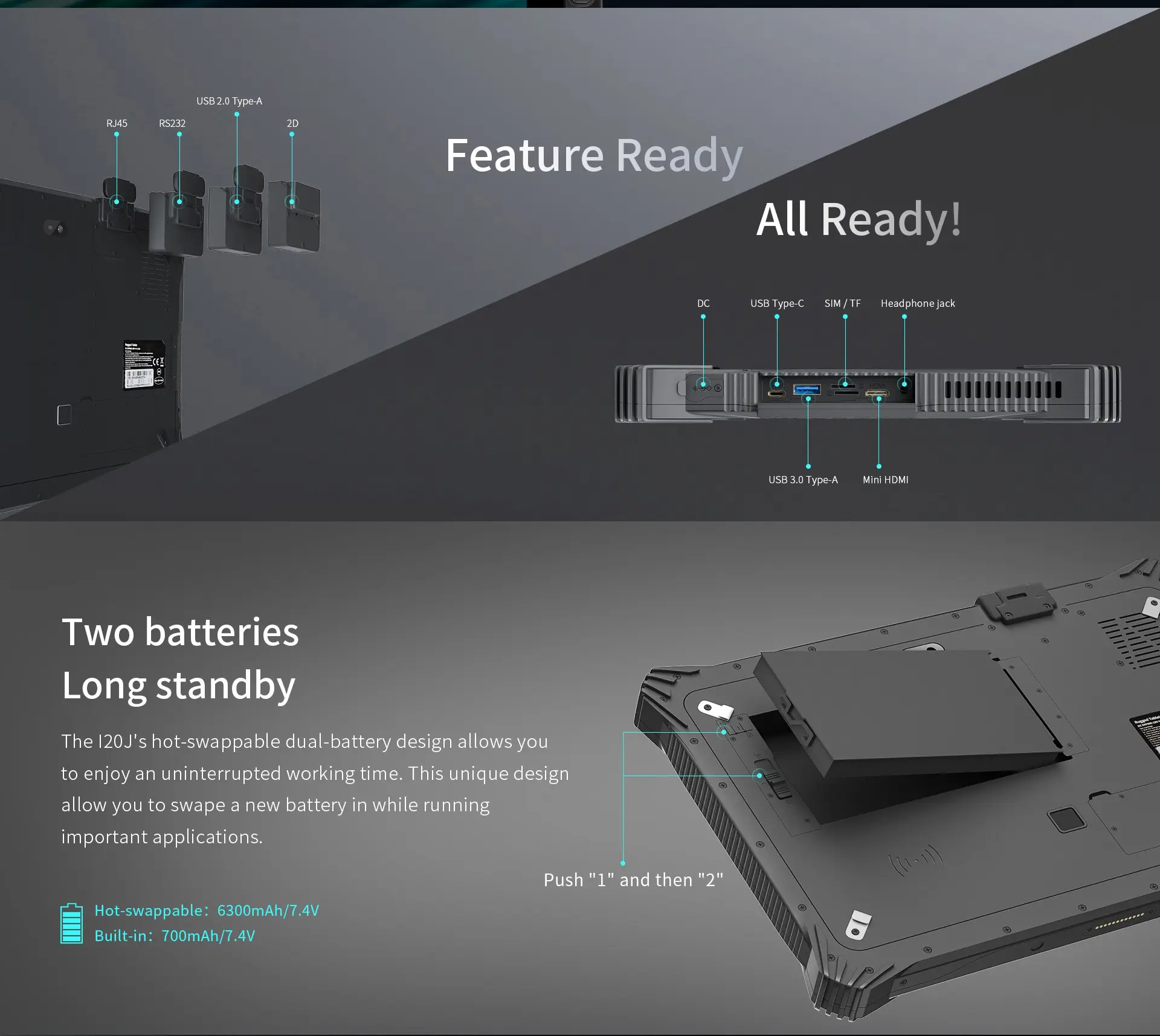

Extension modules（1 out of 4)
| Ethernet interface | RJ45 (Standard, 10/100M/1000M) x 1 |
| Serial port | DB9 (RS232) x 1 |
| USB2.0 | USB 2.0 x 1 |
| 2D | Optional, Optical resolution: 5mil/ scan speed: 50 times/s |
Accessories
Optional

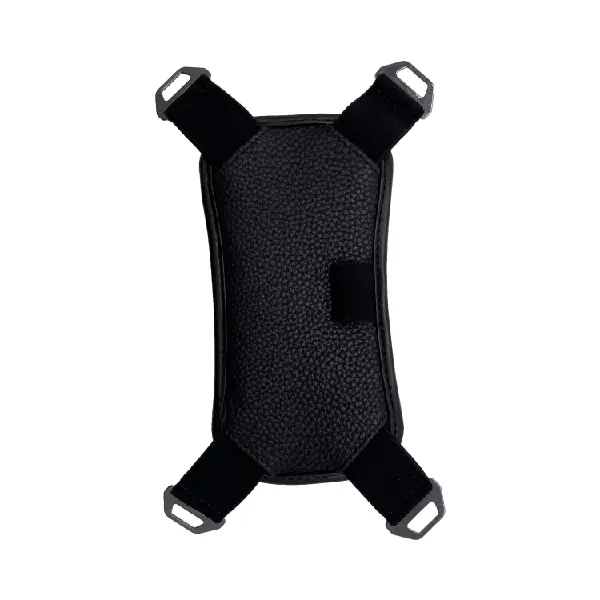

Hand Strap
Docking Charger
Vehicle Mount

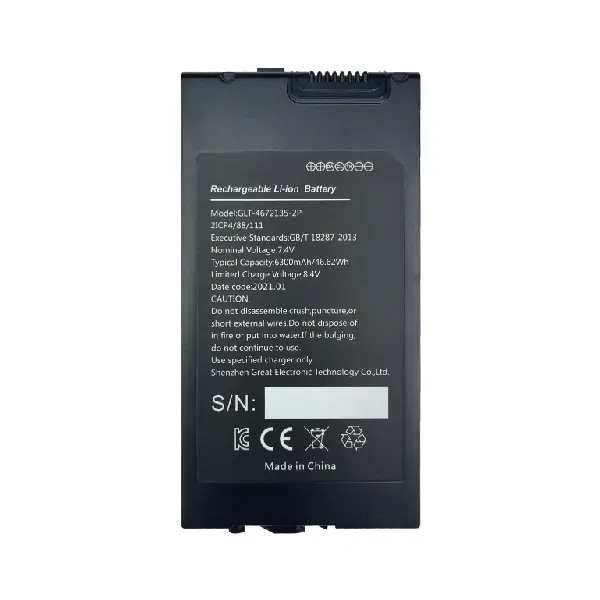

Removable Battery
