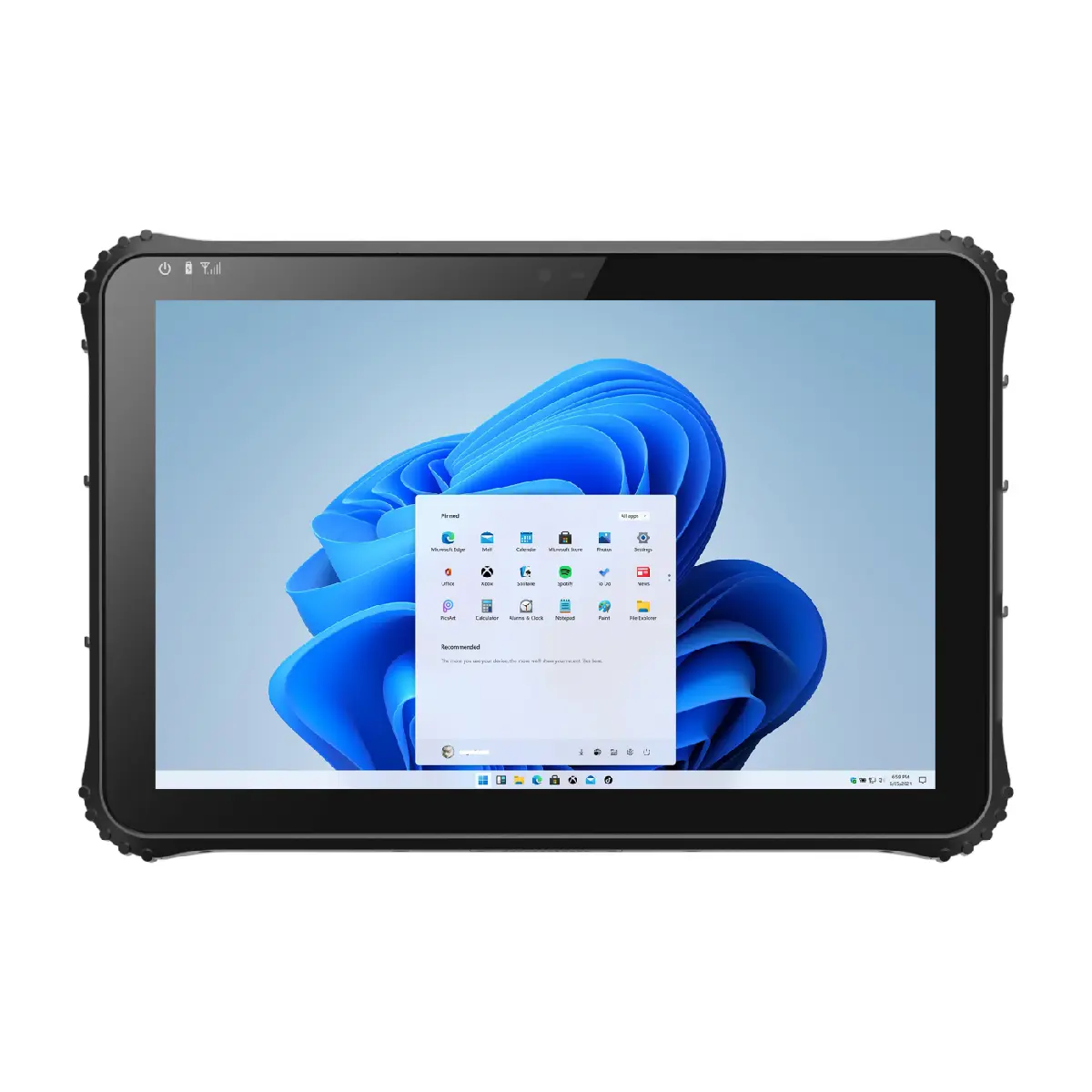

I22J
The I22J is a 12.2-inch Windows rugged tablet for mobile equipment and field deployment, built around Intel Celeron N5100 processing with 4G and 5G connectivity. USB 3.0, HDMI, RJ45 and DB9 ports connect it to controllers, displays and legacy equipment, and the small + large dual-battery design supports extended shifts. It is the platform used in our autonomous mining truck deployment.
- Intel® Celeron™ N5100 processor
- Windows 11 OS
- 12.2” Corning Gorilla Glass HD high-brightness screen
- 4G/5G/dual-band Wi-Fi/BT 5.0 multi-network connectivity
- Supports 1D/2D code scanning & NFC module
- Small + large dual batteries; large battery removable with hot-swap support
- Rich interfaces, supporting USB 2.0/USB
- 3.0/HDMI/RJ45/DB9 ports

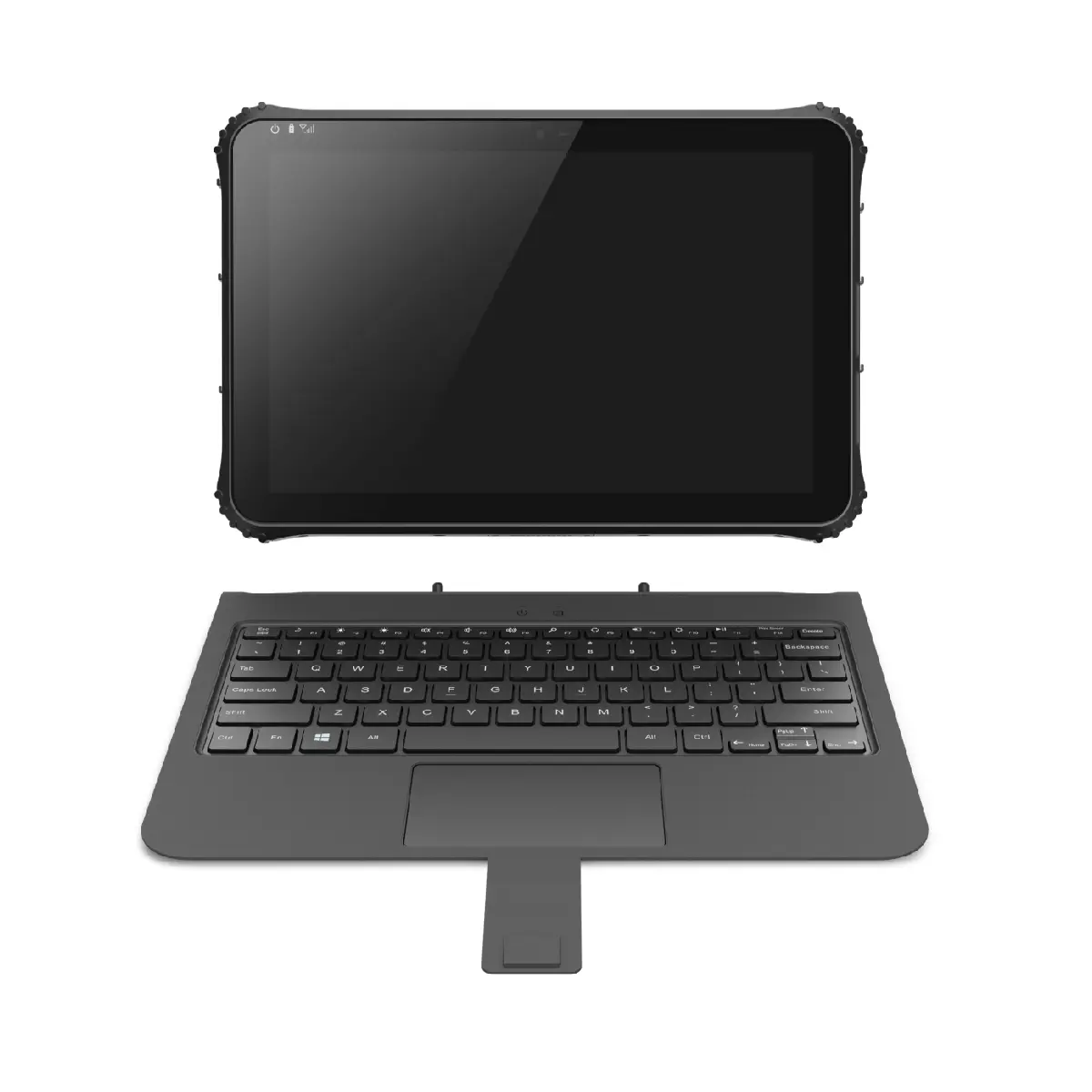

- Multiple accessories, supporting external keyboard
Specification Parameter
Basic parameters

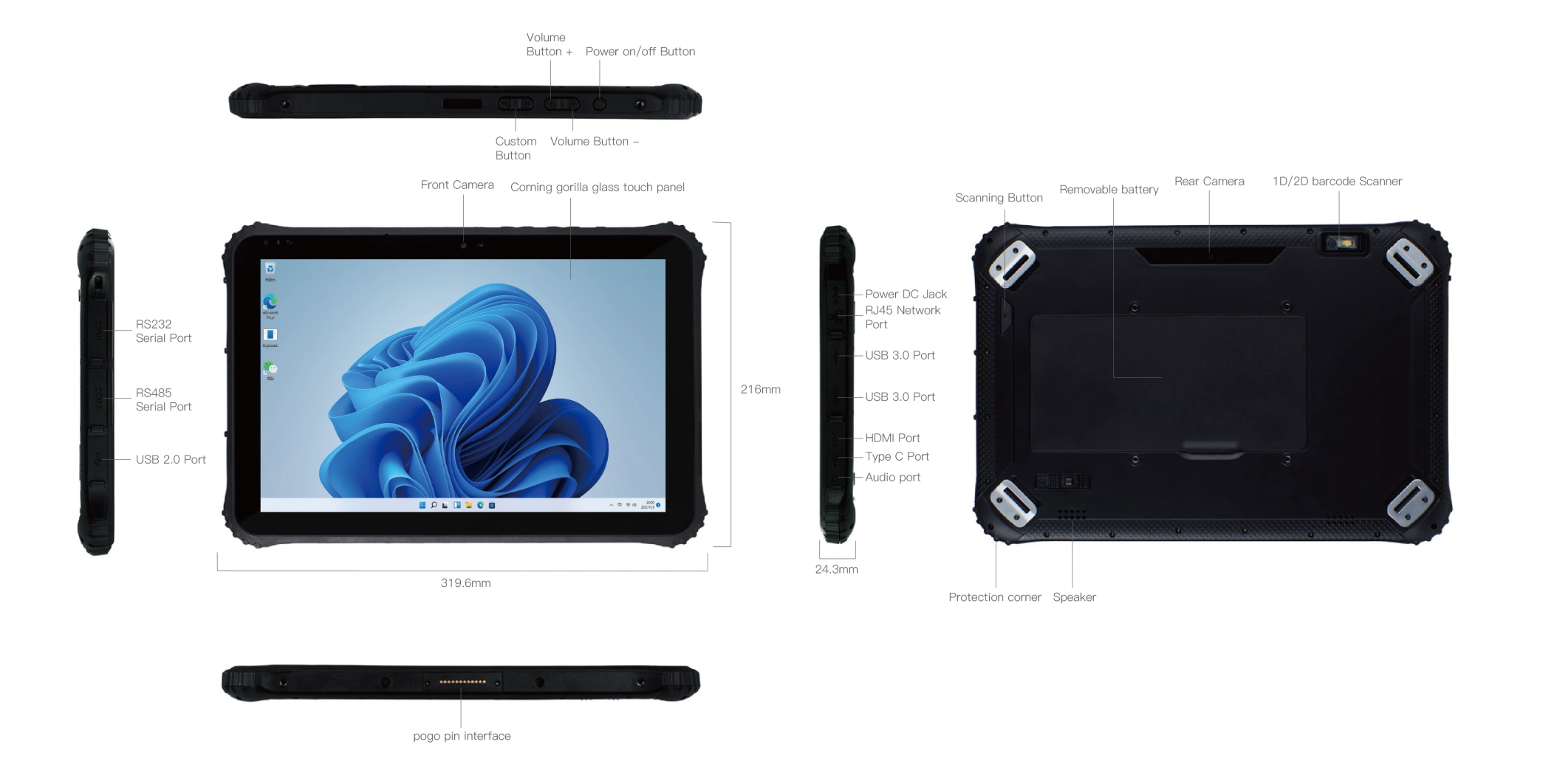

| Dimension | 319.6 x 216 x 24.3mm |
| Weight | Device unit 1500g |
| Device Color | Black |
| LCD | 12.2 inch 16:10, 1920×1200, 650cd/㎡ Optional 280cd/㎡（Optional SLR sunlight visible film） |
| Touch Panel | 10 point capacitive touch screen |
| Camera | Front 5.0MP (MIPI) Rear 8.0MP(MIPI) |

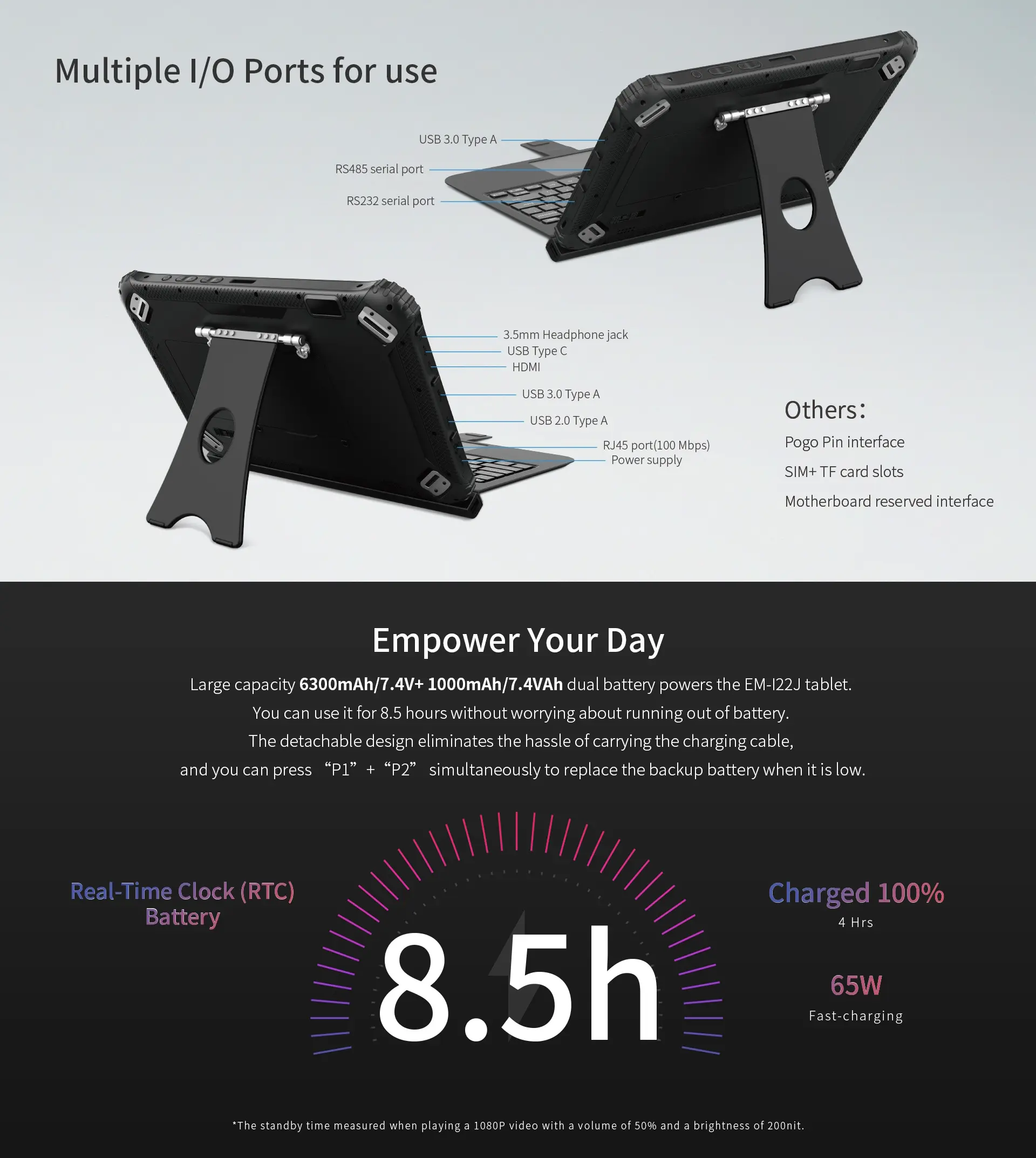

| I/O | USB 2.0 *1 USB 3.0 *2 Type C *1 ∮3.5mm standard earphone jack *1 SIM Card *1, TF Card *1 max：512G DC 12V/4A ∮4mm Power connector *1 HDMI 2.0a mini *1 DB9 (RS232) *1， DB9 (RS485) *1 RJ45 (100Mbps) *1 12PIN Pogo Pin (Support Vehicle Mount, Docking Charger and Keyboard) *1 USB (Reserved interface of mainboard) Serial port (Reserved interface of mainboard) |
| Power | 12V/4A Adapter(EU),Optional, US,CN,EN |
Battery
| Capacity | 1000mAh/7.4V |
| Type | Built-in Li-polymer battery |
| Endurance | 1hrs ( 50% volume sounds, 200 lumens brightness, 1080P HD video display by default ) |
Battery

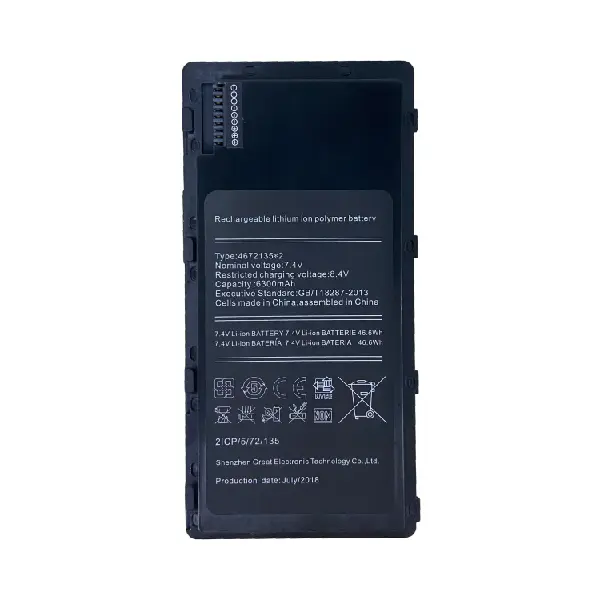

| Capacity | 6300mAh/7.4V |
| Type | Removable Li-polymer battery |
| Endurance | 8.5hrs ( 50% volume sounds, 50% screen brightness, 1080P HD video display by default ) |
Performance parameter
| CPU | Intel® Celeron® Processor N5100 |
| OS | Windows 11 IOT/Home/Pro |
| RAM | 8GB, Optional 4GB/16GB |
| Storage | 128GB, Optional 64GB/256GB/512GB |
Network connections
| WIFI | 802.11(a/b/g/n/ac) Dual frequency 2.4G+5.8G WIFI |
| Bluetooth | BT5.0 Transmission distance: 10m |
| 2G/3G/4G/5G (Optional) | LTE-FDD: B1/3/5/7/8/20 LTE-TDD: B40 WCDMA: B1/5/8 GSM: 900/1800 Optional 5G, SA&NSA: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N71/N77/N78/N79 5G SA&NSA: LTE-FDD: B1/B3/B5/B7/B8/B18/B19/B20/B28/B32 LTE-TDD: B34/B38/B39/B40/B41/B42，WCDMA: B1/B5/B8 5G SA&NSA: LTE-FDD: B1/B3/B5/B8/B28 LTE-TDD: B34/B38/B39/B40/B41 WCDMA: B1/B8，N1/N28/N41/N78/N79 |
| GNSS | Support, GPS, Glonass |
Data Collection

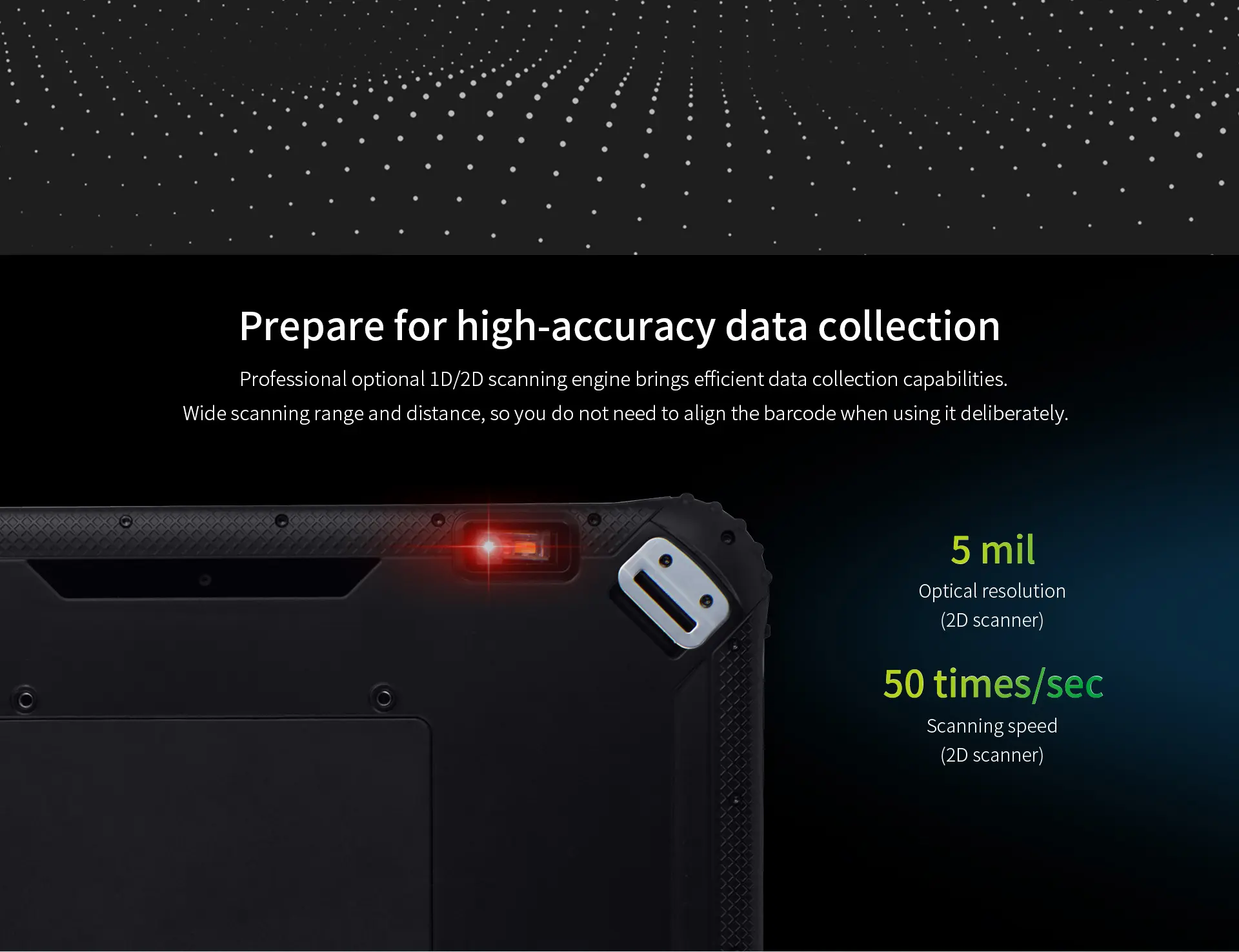

| 1D/2D | Optional, MOTO SE655 Optional, N3680 |
| NFC | Optional, NXP300 |
Reliability
| Operate Temperature | -20 °C ~ 60 °C |
| Store Temperature | -30 °C ~ 70 °C |
| Humidity | 95% Non-Condensing |
| Rugged Feature | IP65 certified, MIL-STD-810G certified |
| Drop Height | 1.22m drop |
Accessories
Standard

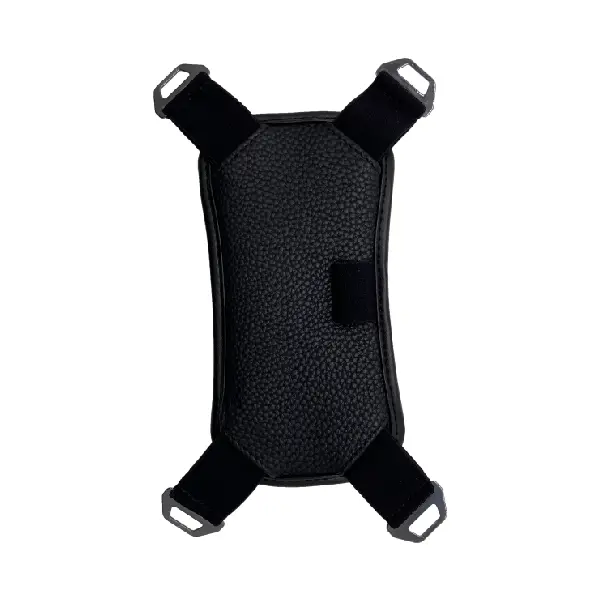

Hand-strap
Carry Handle
Adapter

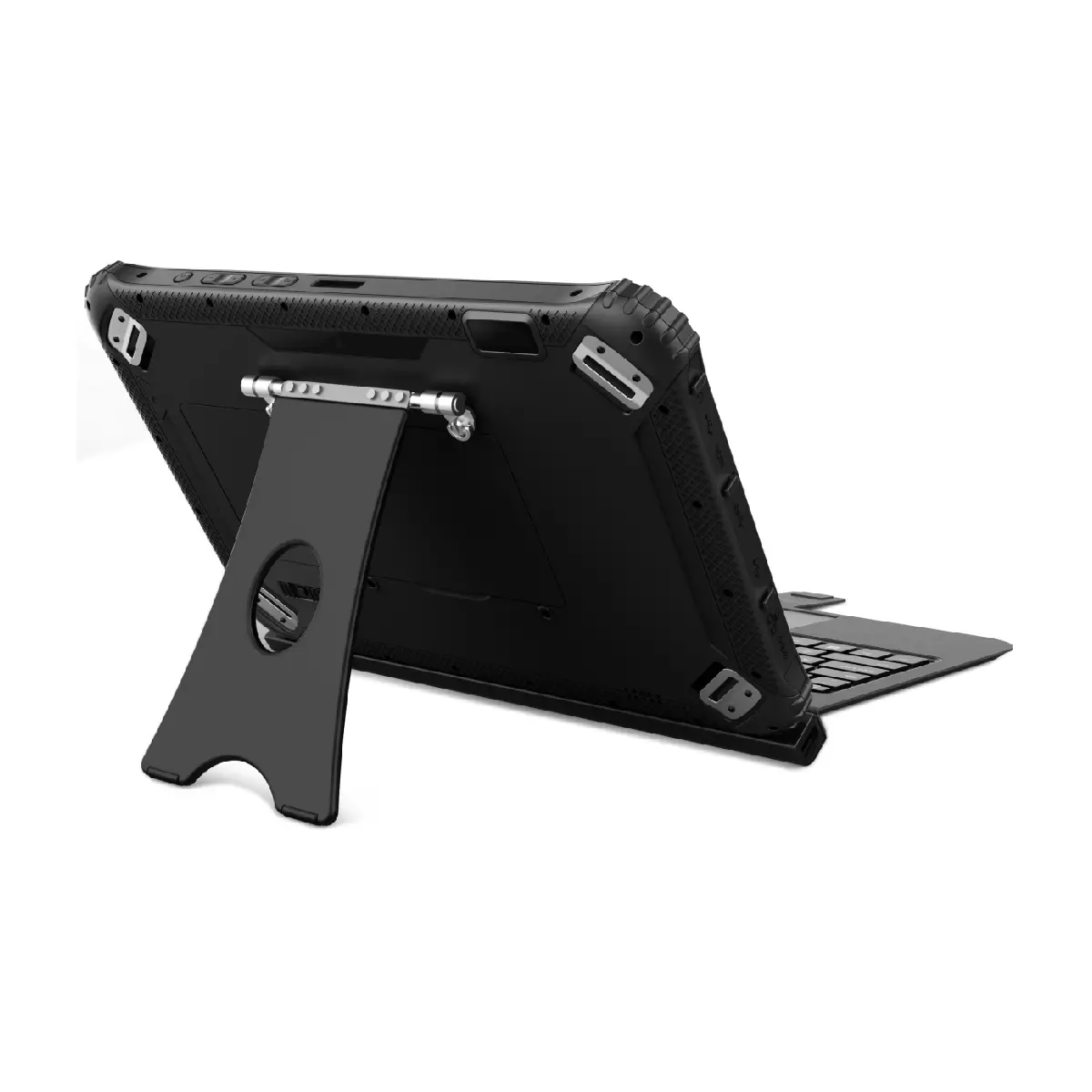

Bracket
Optional

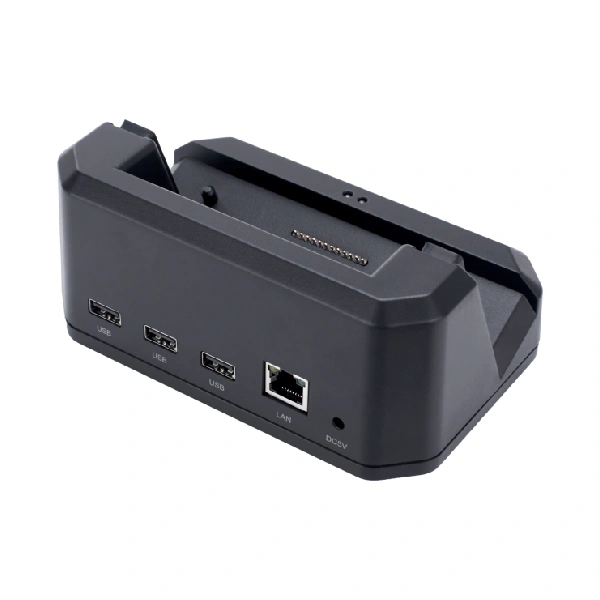

Docking Charger
Vehicle Mount
Car Charge 19V/3.42A
Removable Battery

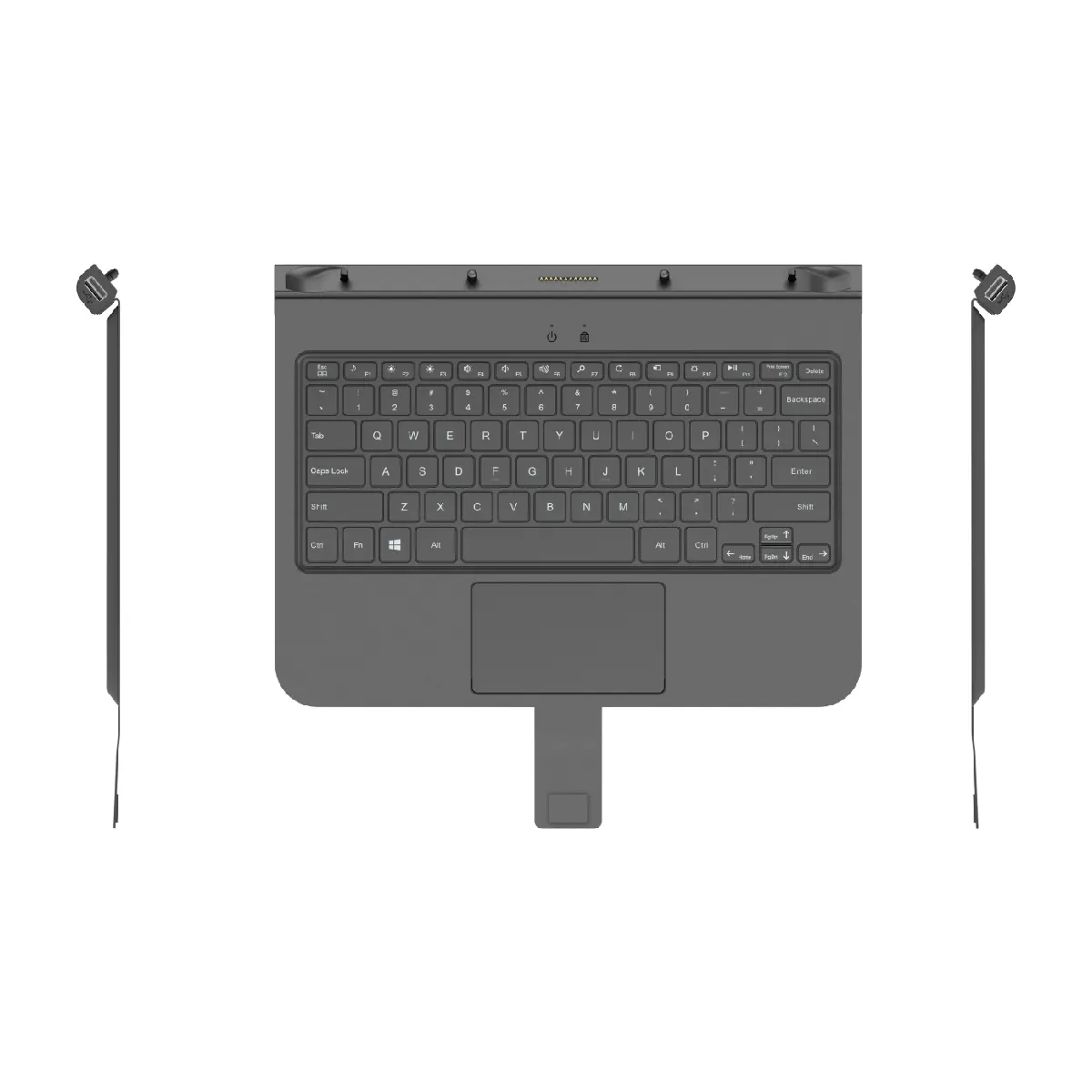

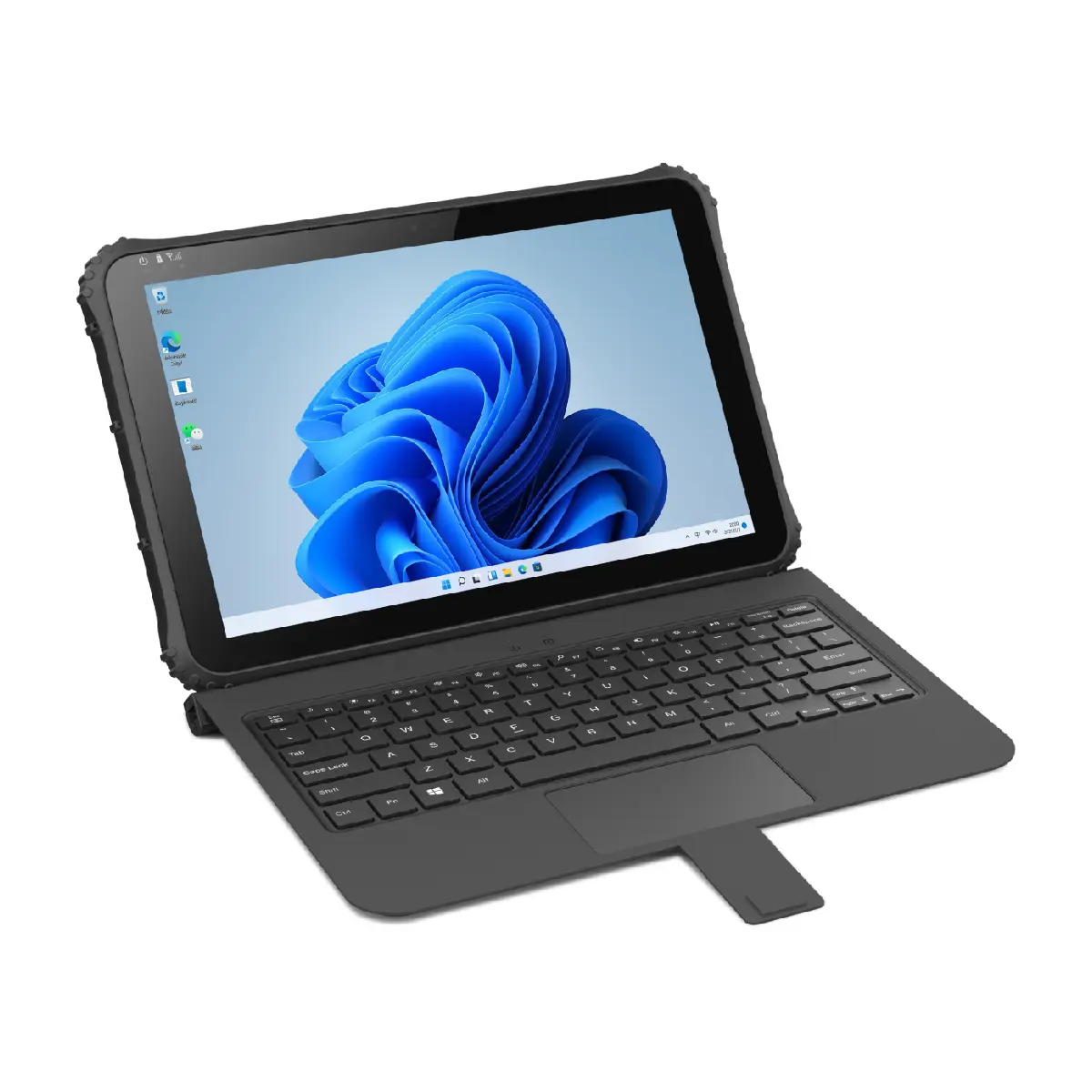

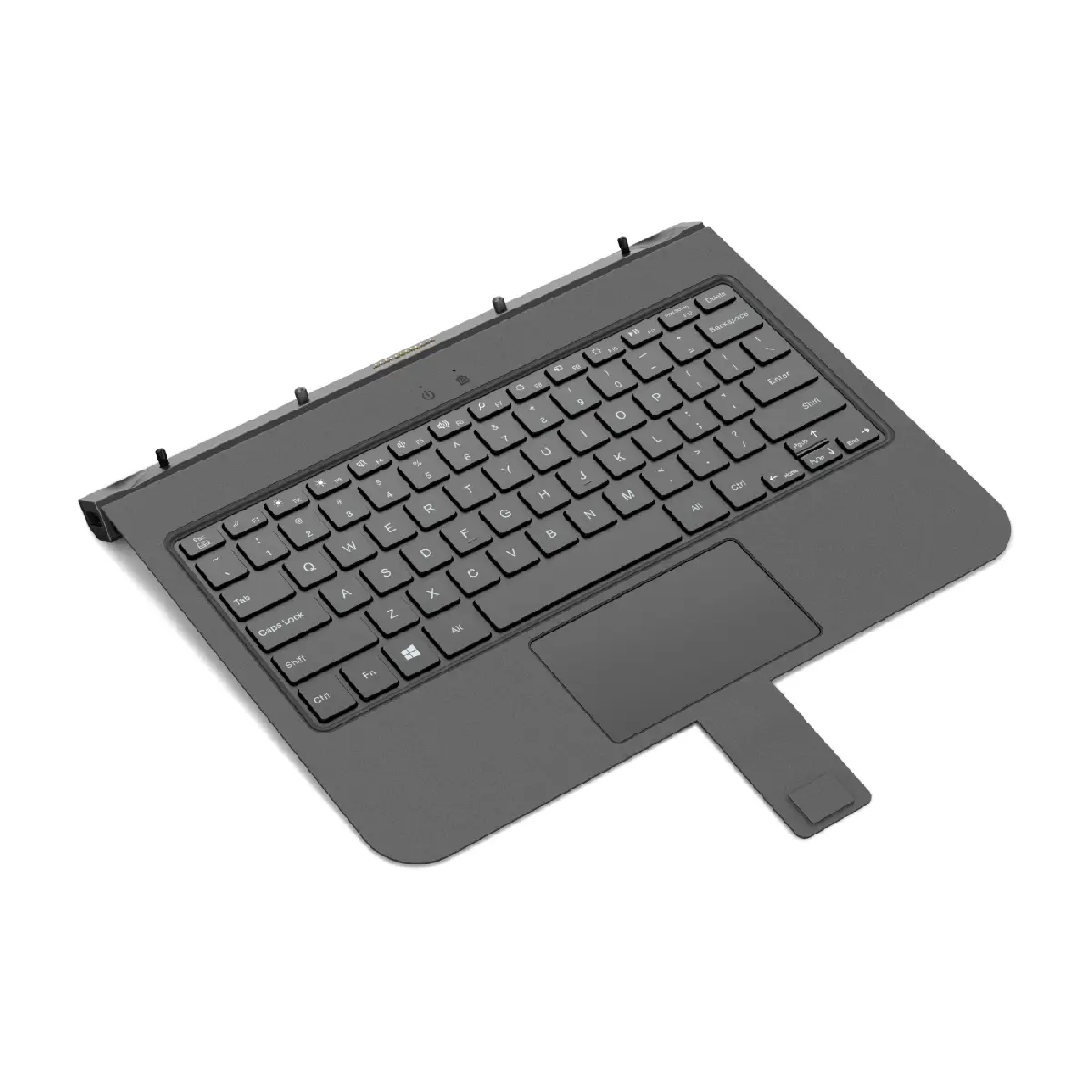

Removable Keyboard
Back-strap

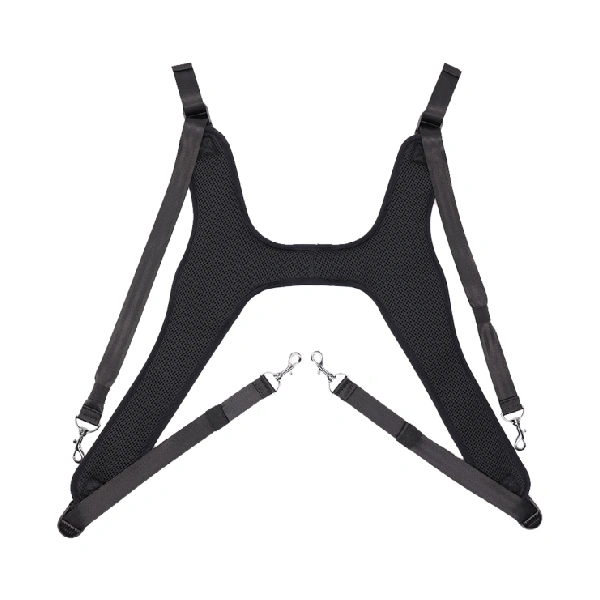

Shoulder-strap
