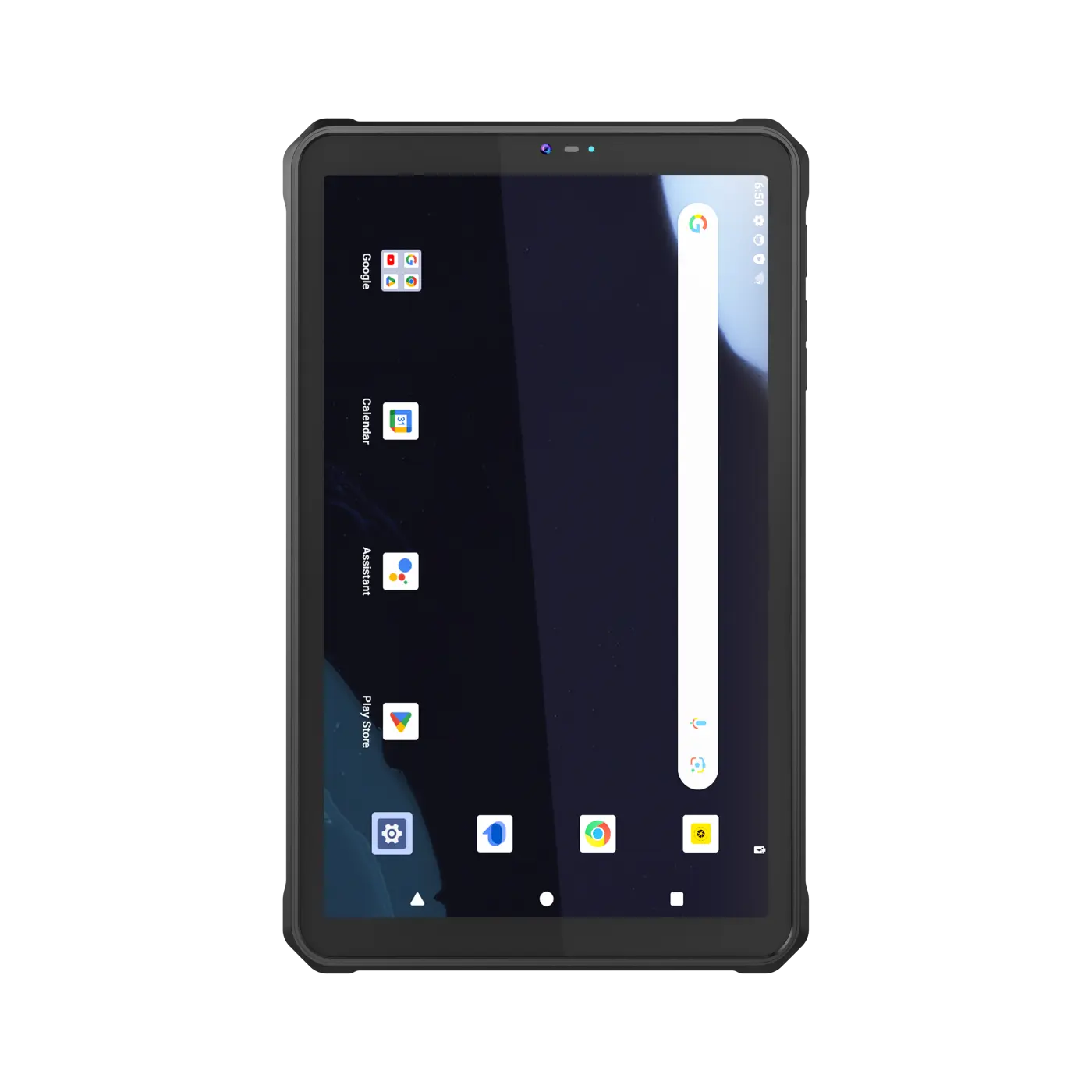

T1
Outdoor Rugged Tablet
- Helio G99 Chip
- 8GB LPDDR4X + 128GB UFS2.2 (Standard)
- Android 14 / GMS
- 220.14×135.5×14mm
- 8.68″(800×1340, 400 nits)
- Wet Hand and Glove Touch Support
- 3.85V/8000mAh Battery
- 33W Fast Charging and Reverse Charging
- 48MP Rear Camera + 32MP Front Camera
- Wi-Fi 5 / BT5.1 / 4G
- IP68, MIL-STD-810H, ATEX
- High-Power Dual Speakers
- Facial Recognition
- NFC
Specification Parameter
| Durability | • MIL-STD-810H certified • 4ft drop 26 faces • IP68 certified • ±8kV contact discharge, ±12kV air discharge |
| Operating System | • Android 14 |
| Processor | • MT8781 • (6x 2.2Ghz Cortex-A76, 2x 2.0Ghz Cortex-A55) |
| Graphics | • ARM G57 MC2 |
| Memory | • 8GB LPDDR4x on board |
| Storage | • 128GB UFS2.2 • Optional 256GB UFS2.2 |
| Display | • 8.68″ FHD(800*1340), 400nits • 10-point capacitive touchscreen, support Glove&Water |
| Audio | •Integrated microphone • Integrated 2W speaker x2 • Smart PA |
| Camera | •Integrated 32.0 MP front camera • Integrated 48.0 MP rear camera |
| Keyboard & Input | • 3 buttons |
| Network & Connectivity | • Intel® Wi-Fi 5（802.11 ac） • Bluetooth® V5.2 • Integrated 4G LTE multi-carrier mobile broadband LTE-FDD(B1/2/3/4/5/7/8/12/17/18/19/20//25/26/28A/28B/66) LTE-TDD(B34/38/39/40/41) WCDMA(B1/2/4/5/8) GSM(B2/3/5/8) • Integrated GPS,Beidou,Galileo,Glonass module |
| Security | • Integrated HF-RFID (NFC) reader |
| Data Capture | • Support face unlocking |
| I/O Interface | • USB2.0（typeC）x1 • 2 of 3 card slot (Nano Sim+Micro SD or Nano Sim+Nano Sim) |
| Battery & Charging | •Battery Li-Ion, 3.85V, 8000mAh, 11.2 hours • 33W Type-C Adapter |
| Environment | • Operating temperature: -20°C ~ 60°C（-4°F ~ 140°F） • Storage tmperature: -30°C ~ 70°C（-22°F~158°F） • Humidity: 95%（Non-Condensing） |

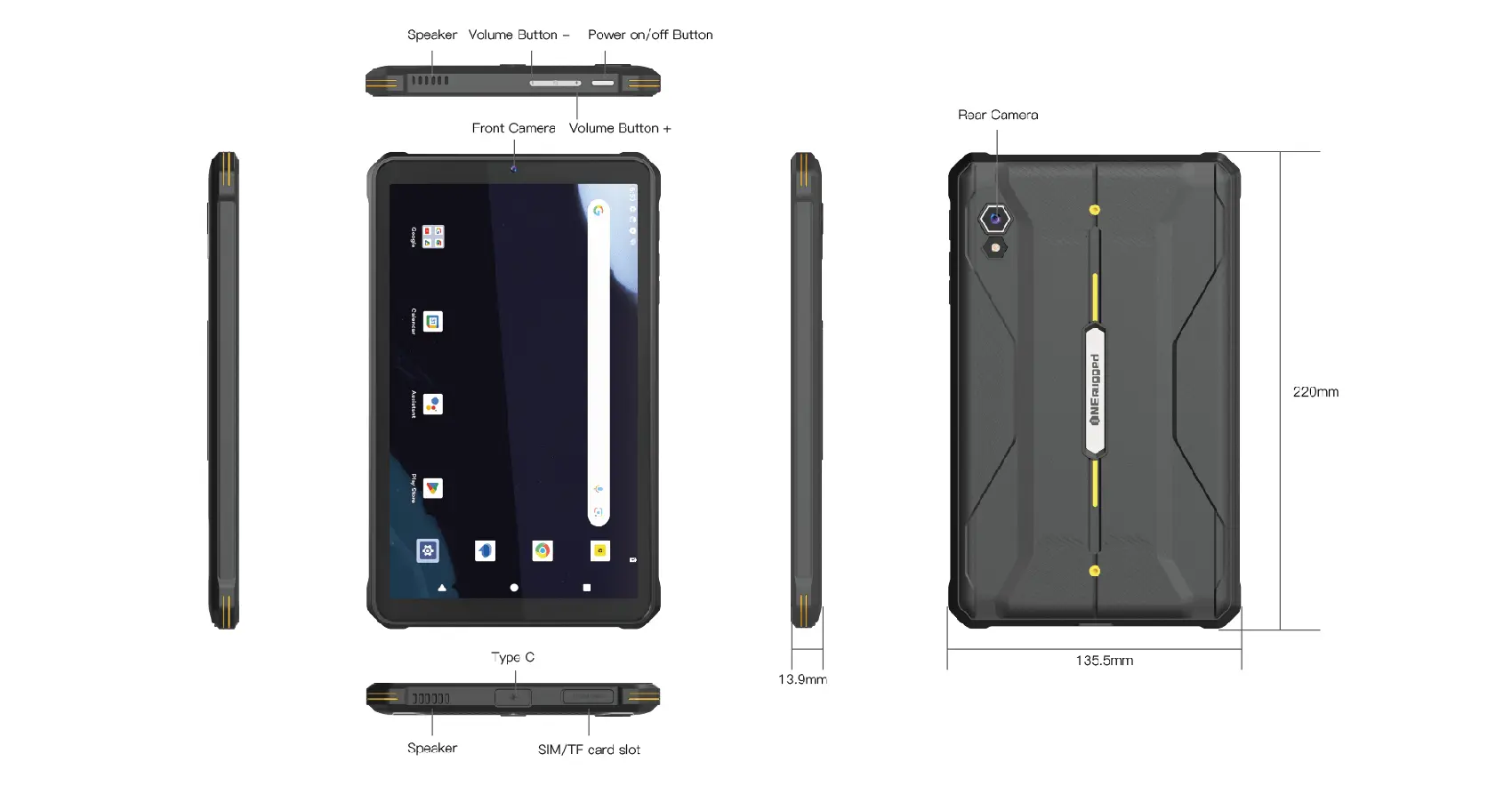

| Dimension | • 220.14 mm(L) × 135.5 mm(W) × 14 mm(H) |
| Weight | • 569g |
| Accessories | • Standard: Adapter, Cable(typeC), Hand Strap • Optional: Film |
| Warranty | • One-year limited warranty standard |
Accessories
Standard
Adapter+Type-C Cable
Hand Strap
Optional
FILM
