T17X (GMS)

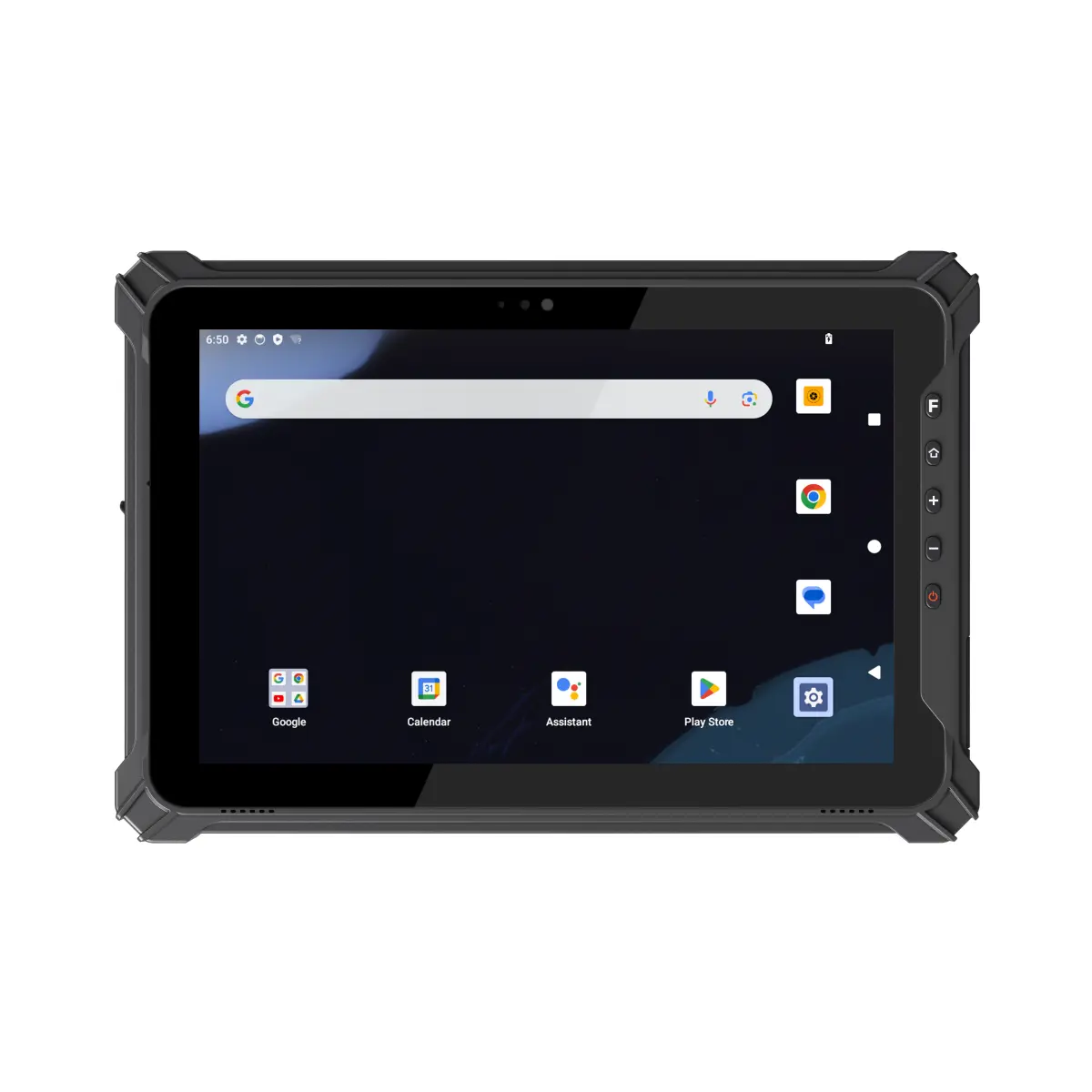

The T17X is a 10.1-inch Android rugged tablet for warehouse, logistics and field-service work. MediaTek MT6789 processing runs Android 14 with GMS and Google Play services, NFC handles badge and asset identification, and the 10,000 mAh (3.8 V) battery covers long shifts without a mid-day charge. 4G, dual-band Wi-Fi and BT 5.1 keep it synchronised with the WMS or the back office.

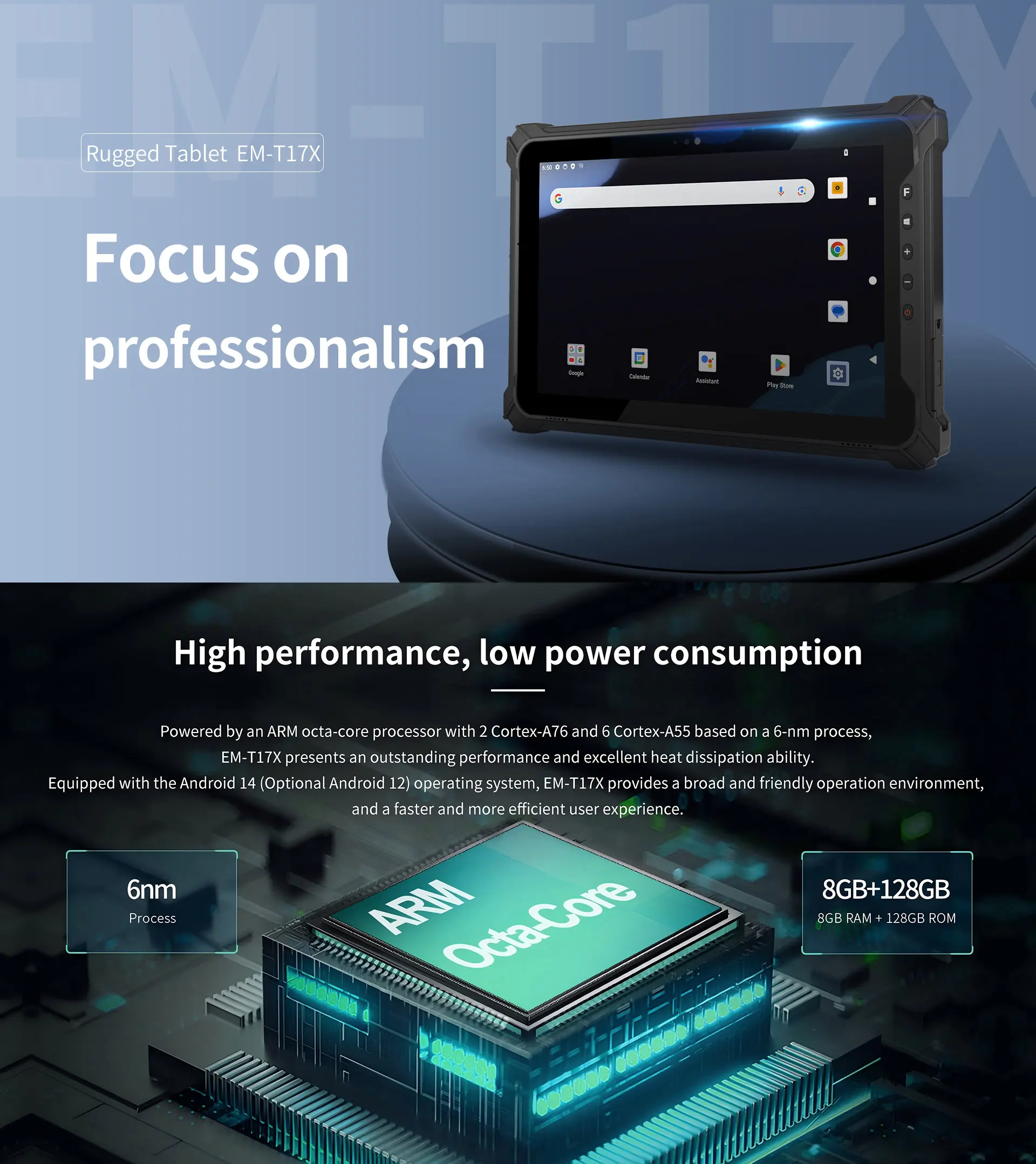

- MT6789 octa-core processor
- Android 14/GMS, optional Android 12/GMS
- 10.1” HD high-brightness display
- Front 5.0MP, rear 13.0MP
- RJ45/RS232/USB 2.0 3-in-1 module
- 10000mAh/3.8V removable battery with battery-free operation support
- 4G/dual-band Wi-Fi/BT 5.1 multi-communication modes
- Supports barcode scanning & NFC module
Specification Parameter
Basic parameters

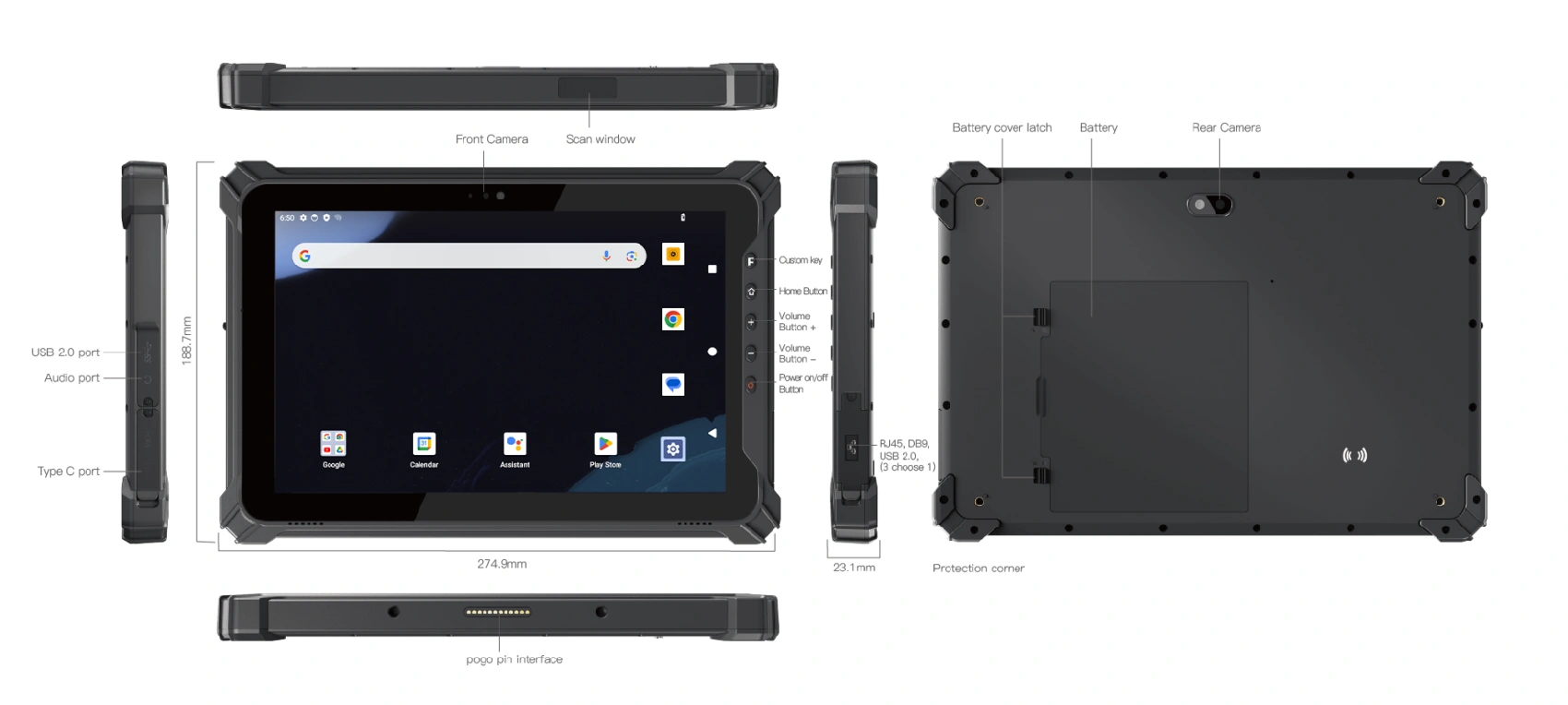

| Dimension | 274.9 x 188.7 x 23.1mm |
| Weight | device unit 1140g |
| Device Color | Black |

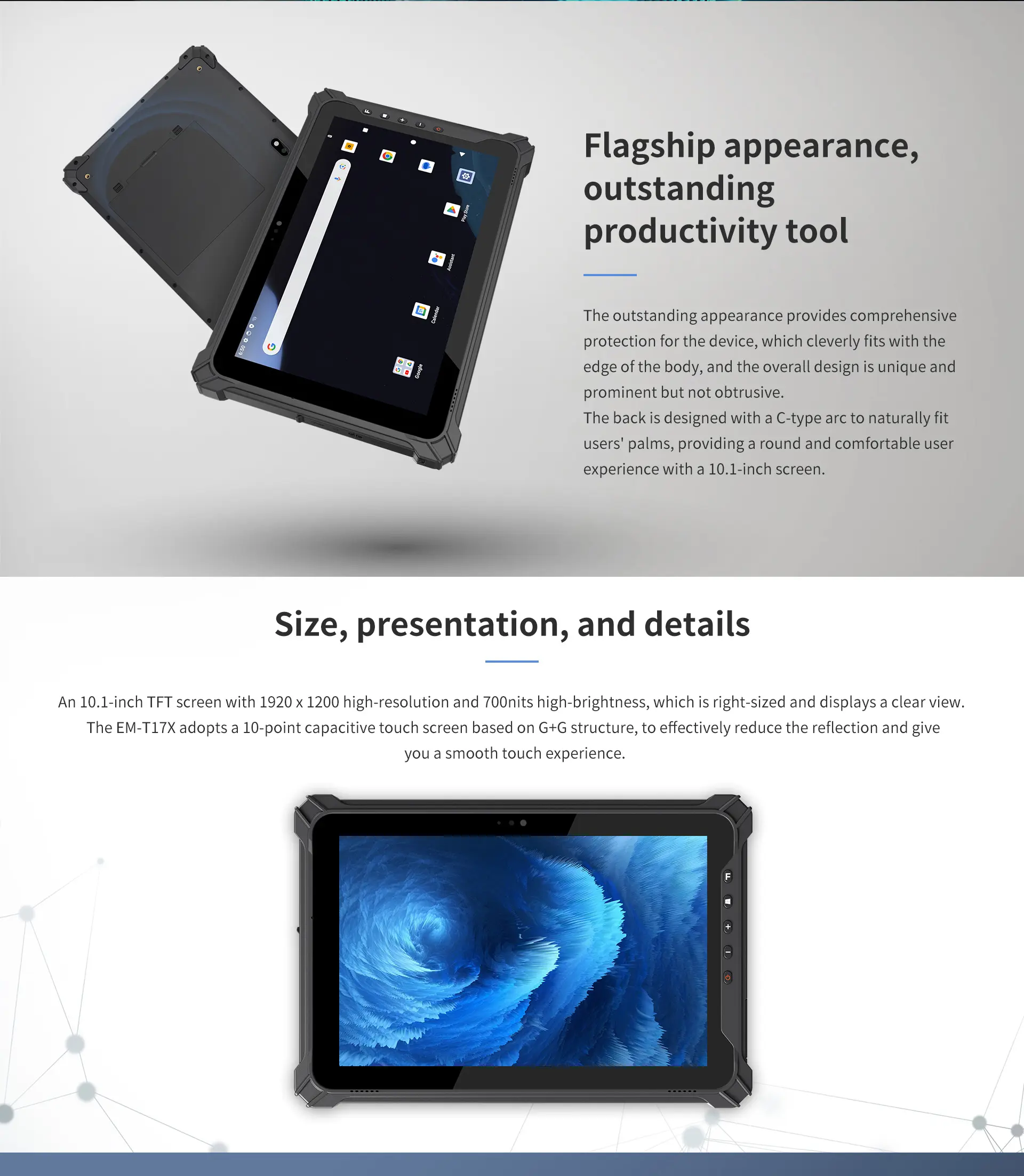

| LCD | 10.1 inch TFT 16:10, 1920×1200, 700nits |
| Touch Panel | 10 point capacitive touch screen |
| Camera | Front 5.0MP Rear 13.0MP |

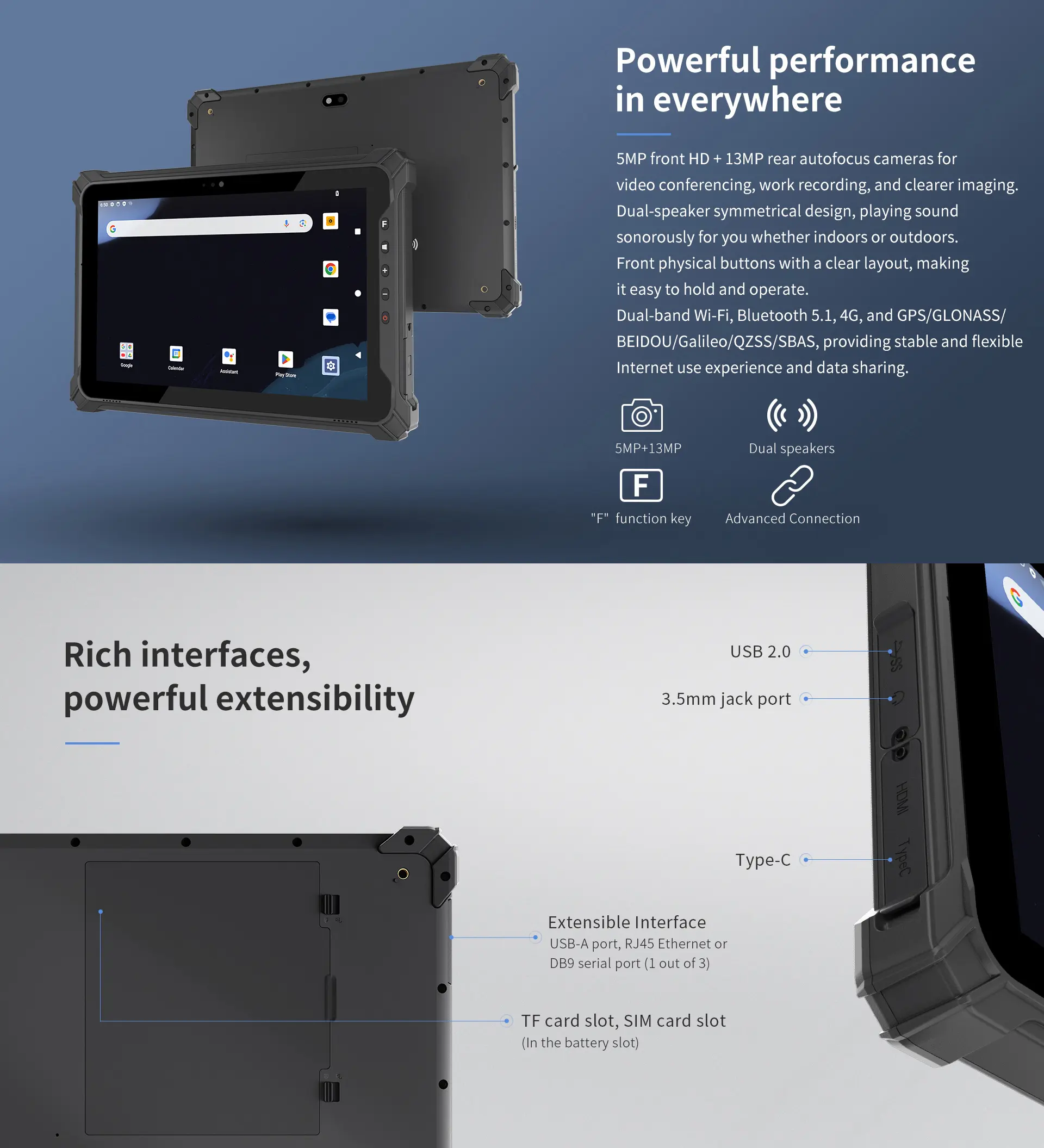

| I/O | USB 2.0 Type-A x 1, USB Type-C x 1, SIM Card x 2, TF Card (Three in one card holder), 12PIN Pogo Pin x 1, Φ3.5mm standard earphone jack x 1 |
| Extension interface (3 choose 1) | RJ45 (10/100M) x 1 (standard), DB9 (RS232) x 1, USB 2.0 Type-A x 1 |
| Power | USB Type-C interface, supports fast charging PE+2.0, maximum power of 18W, maximum 9V/2A |
Communication
| WIFI | 802.11 a/b/g/n/ac (2.4G/5.8G) |
| Bluetooth | BT5.2 Transmission distance: 10m |
| 4G | LTE FDD: B1/B2/B3/B4/B5/B7/B8/B17/B20/B28A/B28B, WCDMA: B1/B2/B5/B8, GSM: B2/B3/B5/B8，LTE-TDD: B38/B39/B40/B41 |
| GNSS | Support, GPS, Glonass, Beidou, Galileo, QZSS, SBAS |
Performance parameter
| CPU | ARM (OCTA Core) |
| OS | Android 14/GMS, optional Android 12/GMS |
| RAM | 8GB |
| ROM | 128GB |
Battery

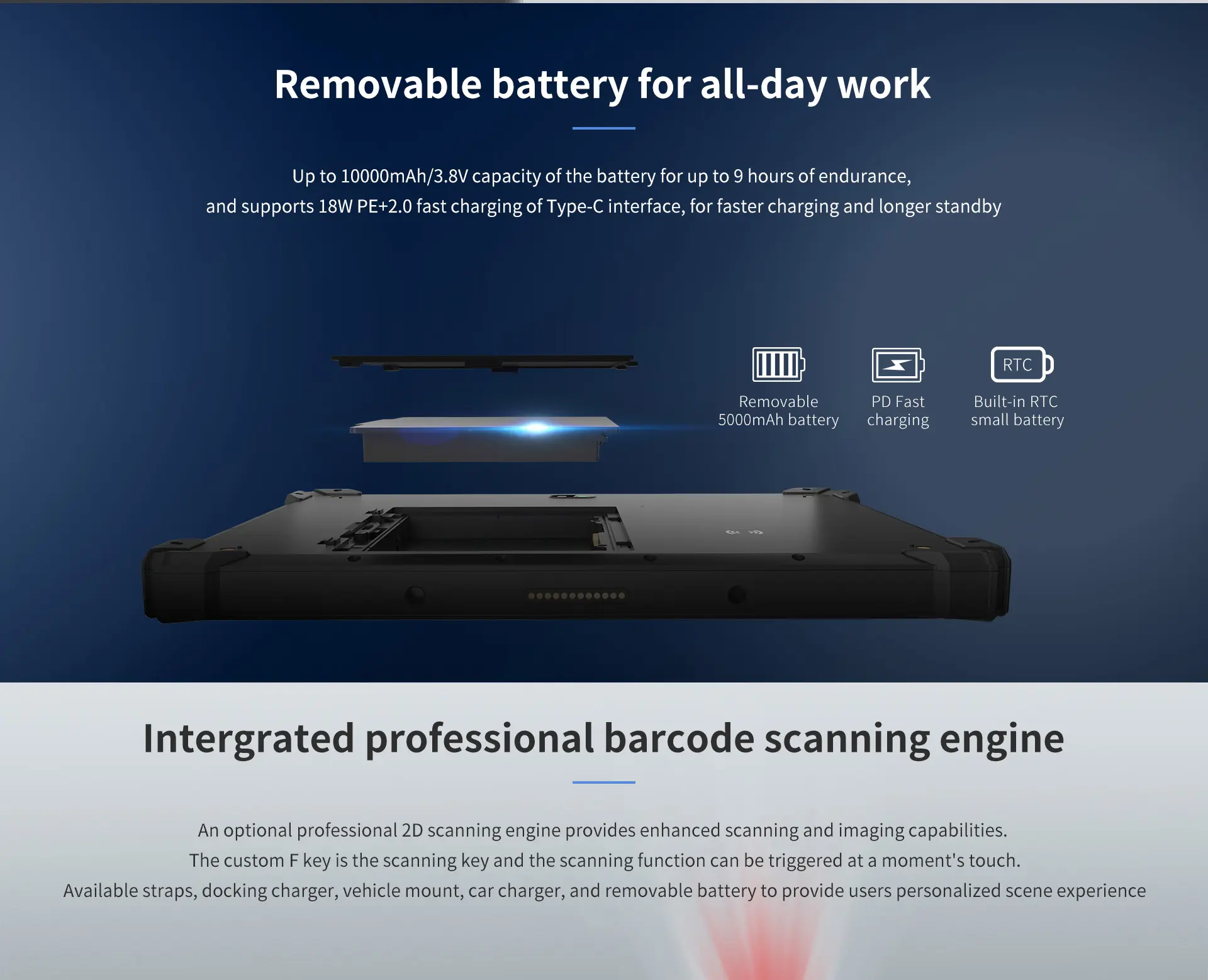

| Capacity | 10000mAh/3.8V |
| Type | Removable Li-polymer battery |
| Endurance | 9hrs (50% volume sounds, 50% screen brightness, 1080P HD video display by default ) |
Reliability
| Operate Temperature | -20 °C ~ 60 °C |
| Store Temperature | -30 °C ~ 70 °C |
| Humidity | 95% Non-Condensing |

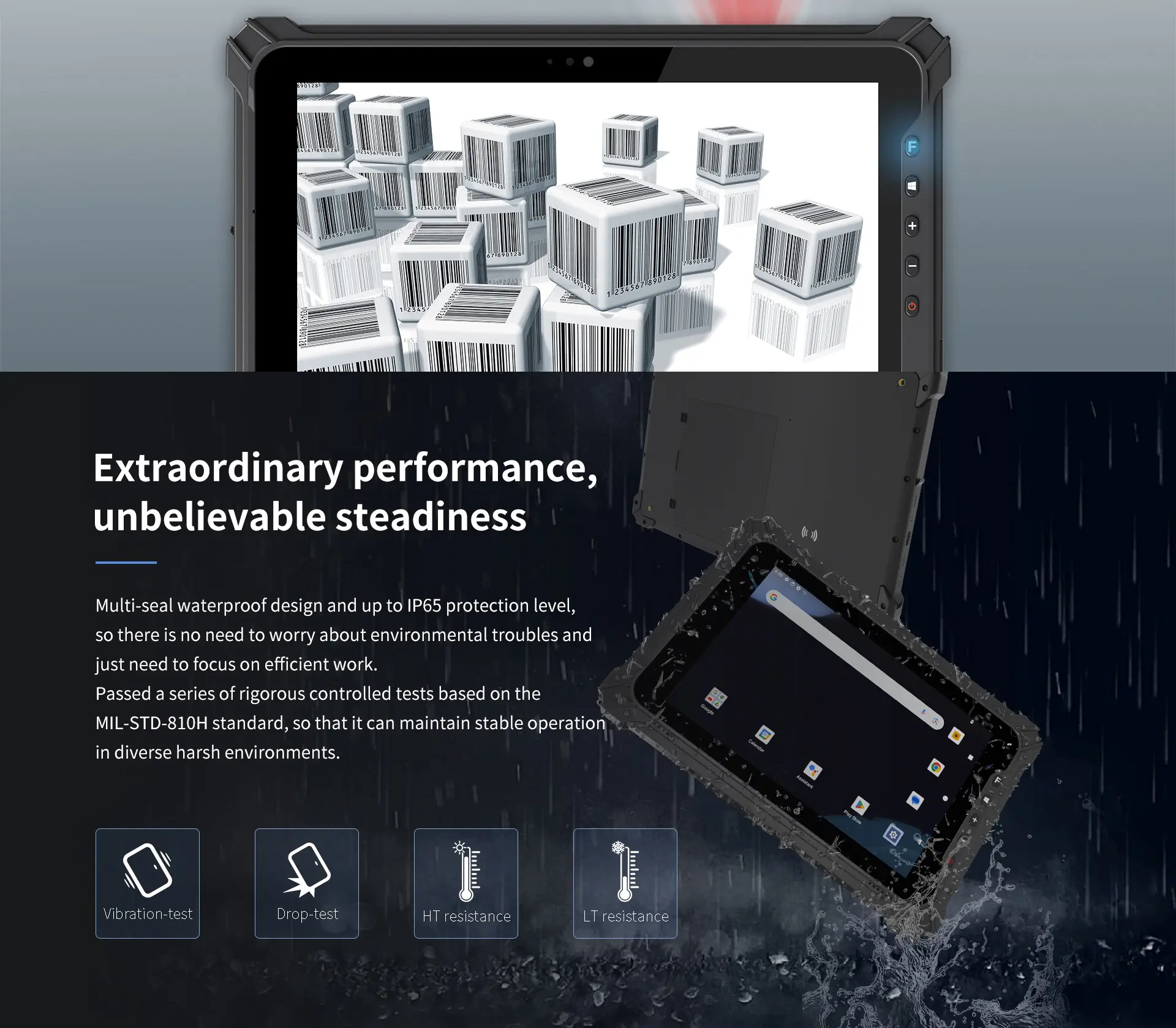

| Rugged Feature | IP65 certified, MIL-STD-810H certified |
| Drop Height | 1.22m drop |
Data Collection
| NFC | 13.56MHz, Support ISO/IEC 14443A/B/15693/18092/mifare protocols Card reading distance: 4cm |
| 2D | Optional |
Accessories
Standard
Fast charging adapter
Hand-strap
Optional
Removable battery
Vehicle Mount
Docking Charger
