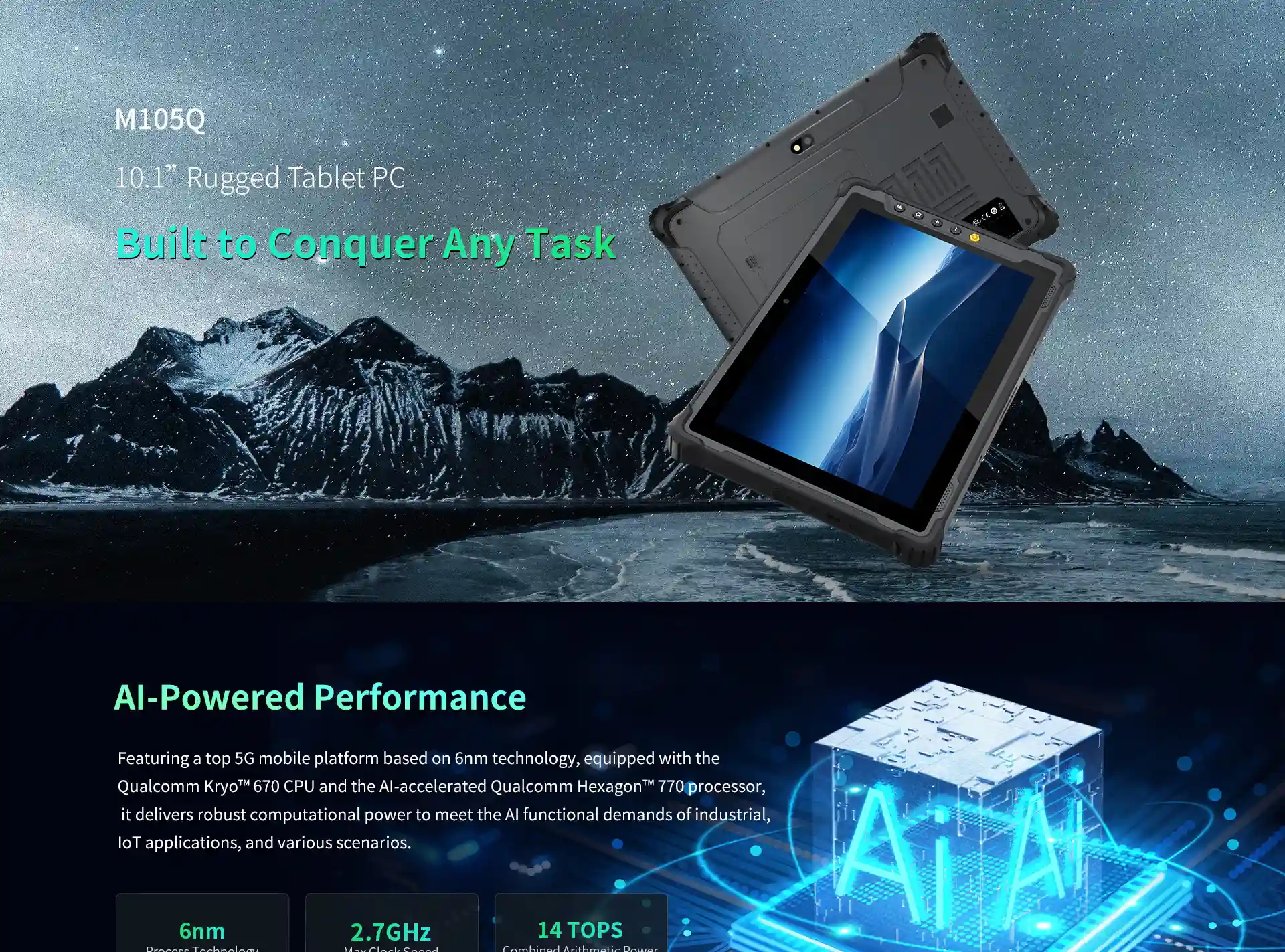

Name: 10.1" GNSS Rugged Tablet
Brand: TERVEX
SKU: M105Q
Availability: InStock

M105Q

Durability	• MIL-STD-810H certified • 4 ft, 26 drops (each side, edge, and corner) • IP65 certifed • +8kV contact discharge, +10kV air discharge
Operating System	• Android 14 (GMS)
Processor	• QCM6490 Octa-core ARM 1x A78 (2.7 GHz) +3x A78 (2.4 GHz) + 4x A55 (1.9 GHz)
Graphics	• Adreno^TM 643
Memory	• 8GB LPDDR4x on board
Storage	• 128GB eMMC
Display	• 10.1″, FHD (1200×1920), 1000 nits • 10-point capacitive touch screen
Audio	• Integrated microphone • Integrated 1W speaker x2 • Class K
Camera	• MF 5.0 MP front camera • AF 13 MP rear camera
Keyboard & Input	• 5 buttons (user-definable key x1)
Network & Connectivity	• Wi-Fi 6E 802.11 a/b/g/n/ac/ax, supports 2×2 MU-MIMO • Bluetooth® 5.2 • Integrated 5G 5G: SA/ NSA: n1/ 3/ 5/7/ 8/ 20/28/ 38/ 40/ 41/ 77/78/79 4G:B1/ 2/ 3/4/ 5/7/8/12/ 17/18/ 19/ 20/ 26/ 28/32/ 34/ 38/39/ 40/ 41/ 42 3G: B1/ 2/ 4/ 5/ 6/ 8/ 19 2G: B2/ 3/ 5/ 8 • GPS/GLONASS/BDS module

Security	• Optional HF-RFID (NFC) reader
Data Capture	• Optional 1D/2D barcode reader

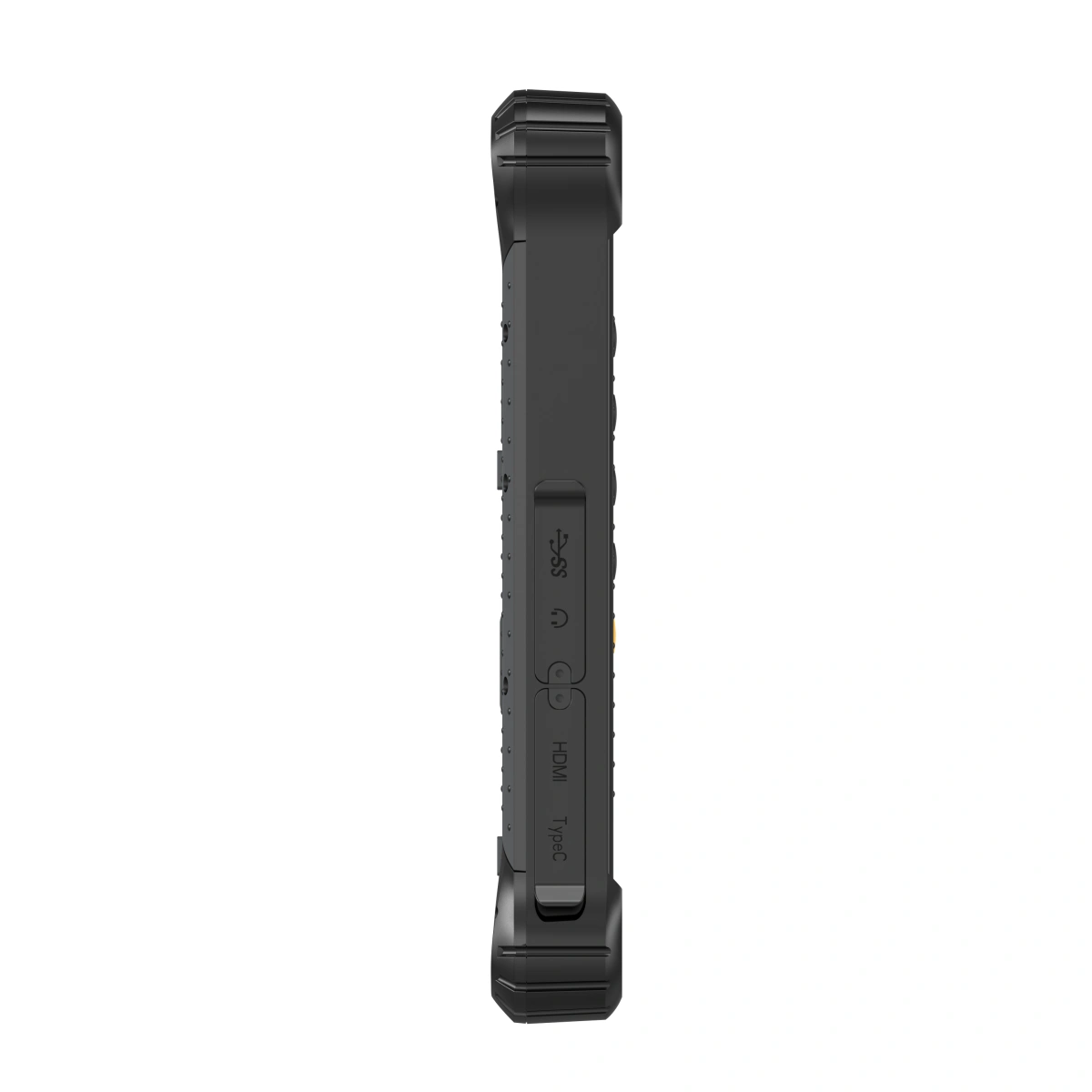

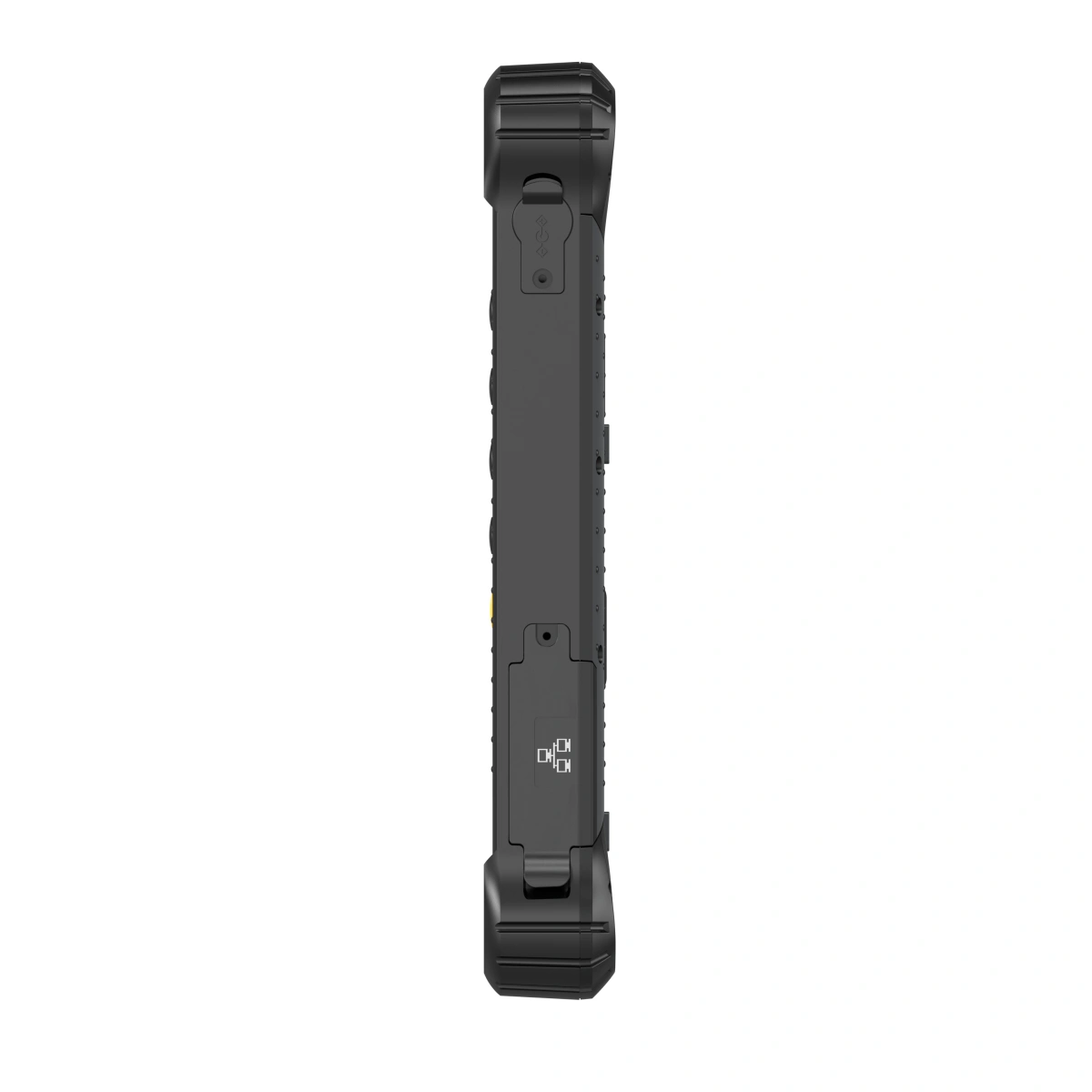

I/O Interface	• USB 3.0 (Type-A) x1 • Type C x1 (Data & Charging) • 3.5 mm Standard Earphone Jack x1 • Nano-SIM x 2/Micro SD Supports up to 512GB x 1 +Nano-SIM x 1 (three-in-one card slot) • DC Supports 5V/4A Charging • RJ45 100M Network port x1 • 12-pin Pogo pin x1 • HDMI x1

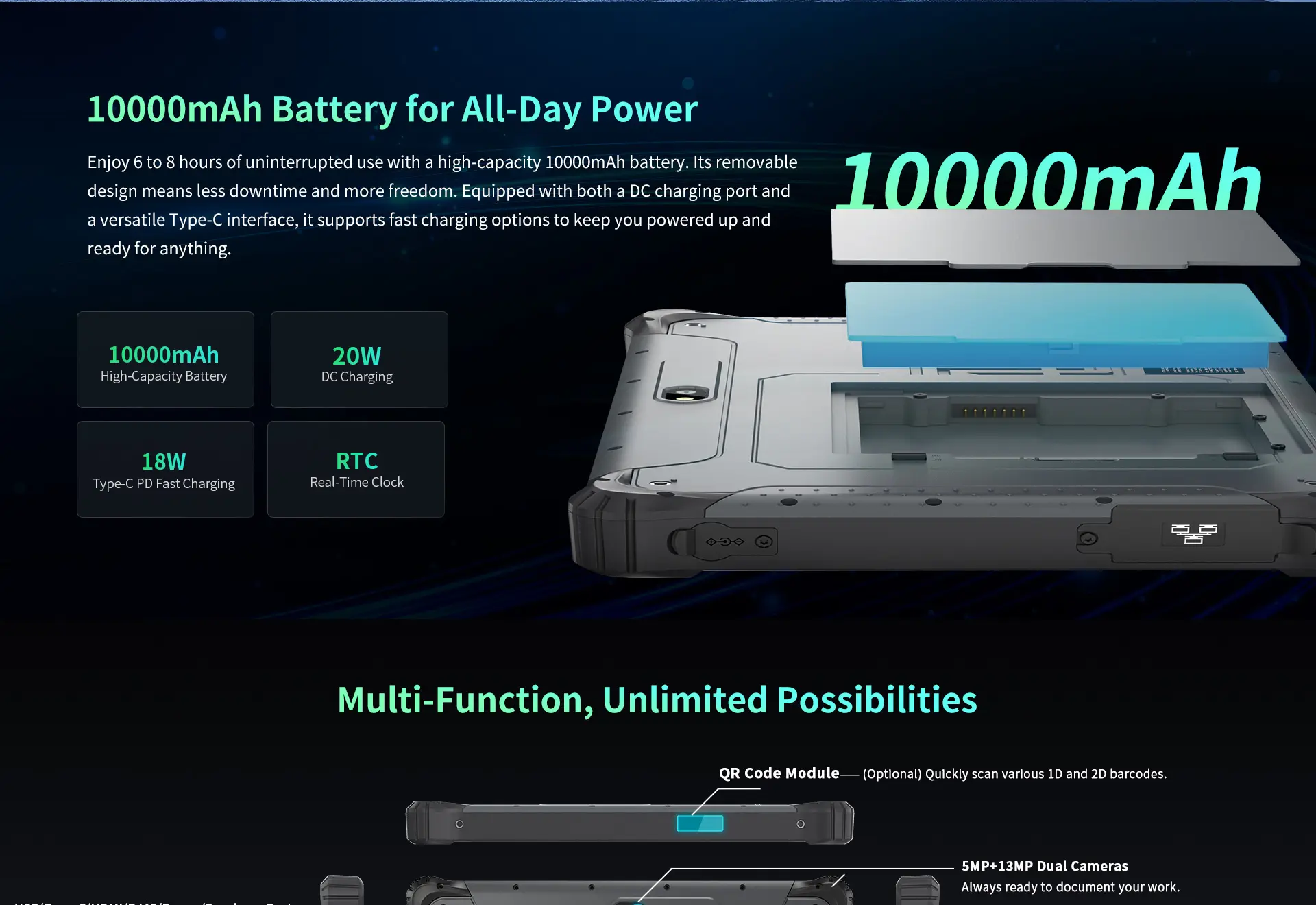

Battery& Charging	• Li-ion battery, 3.8V, 10000mAh, 6h • RTC 3V/1mAh on board • AC adapter: 100-240V, 50Hz-60Hz, 20W (5V/4A)
Environment	• Operating temperature: -20°C to 60°C (-4°F to 140°F) • Storage temperature: -30°C to 70°C (-22°F to 158°F) • Humidity: 95% (non-condensing)

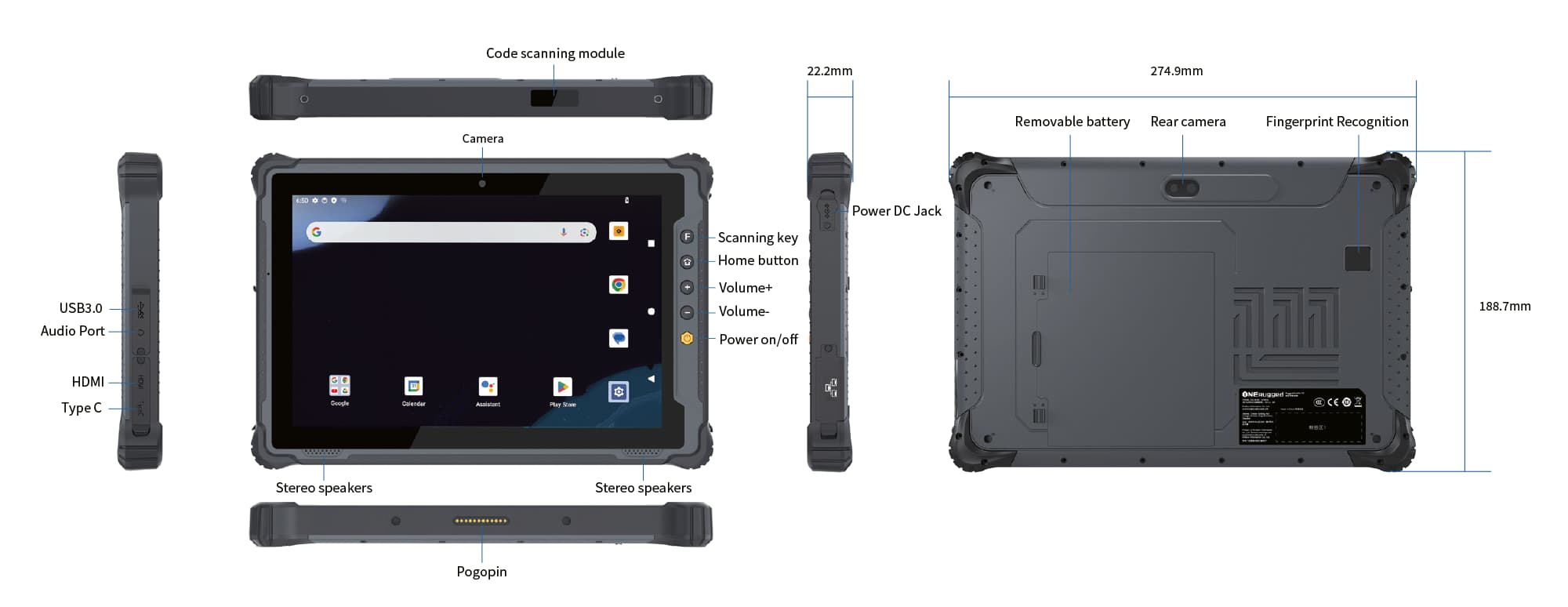

Dimension	• 274.9 mm (L) x 188.7 mm (W) x 22.2 mm (H)
Weight	• 1020g
Accessories	• Standard: Adapter, Hand strap • Optional: Docking charger, Vehicle mount, Quad charging dock
Warranty	• One-year limited warranty standard
