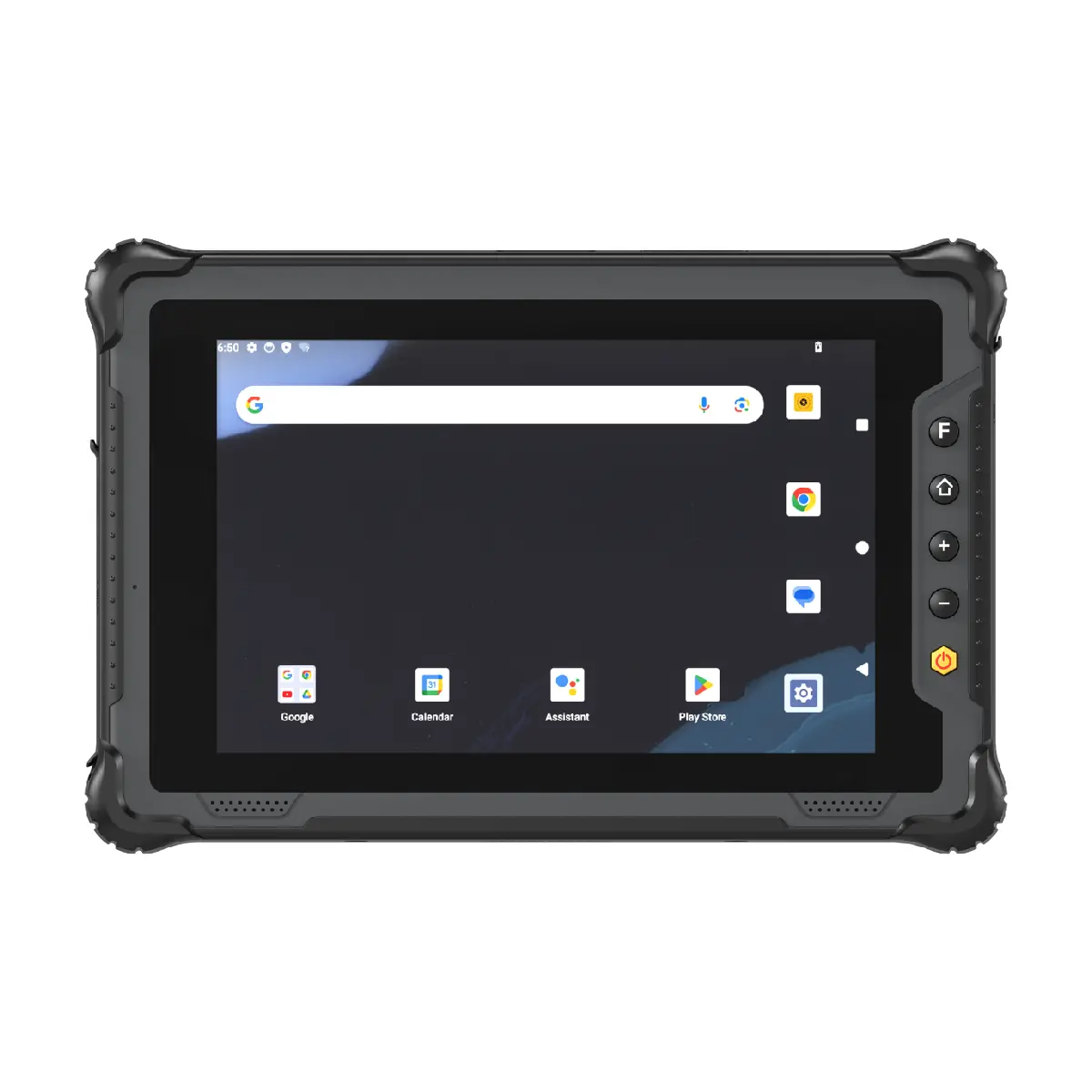

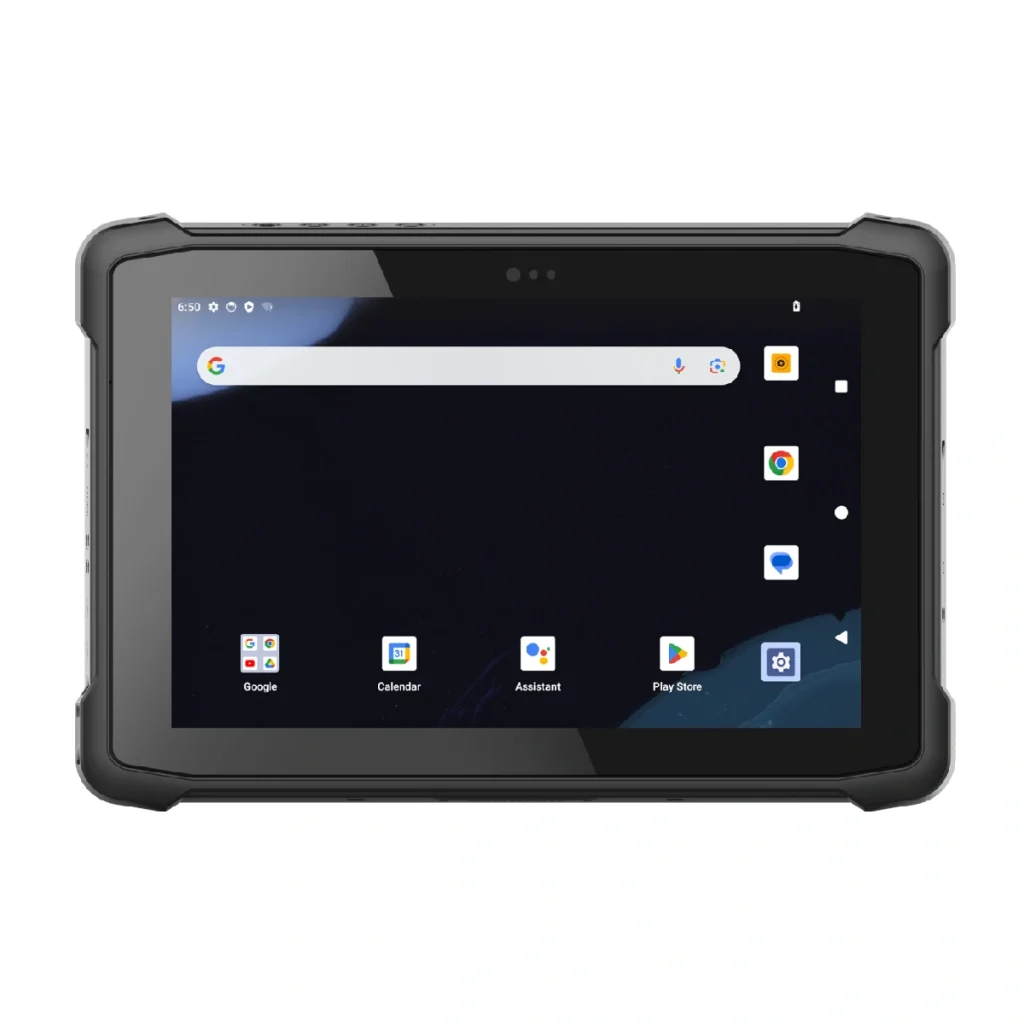

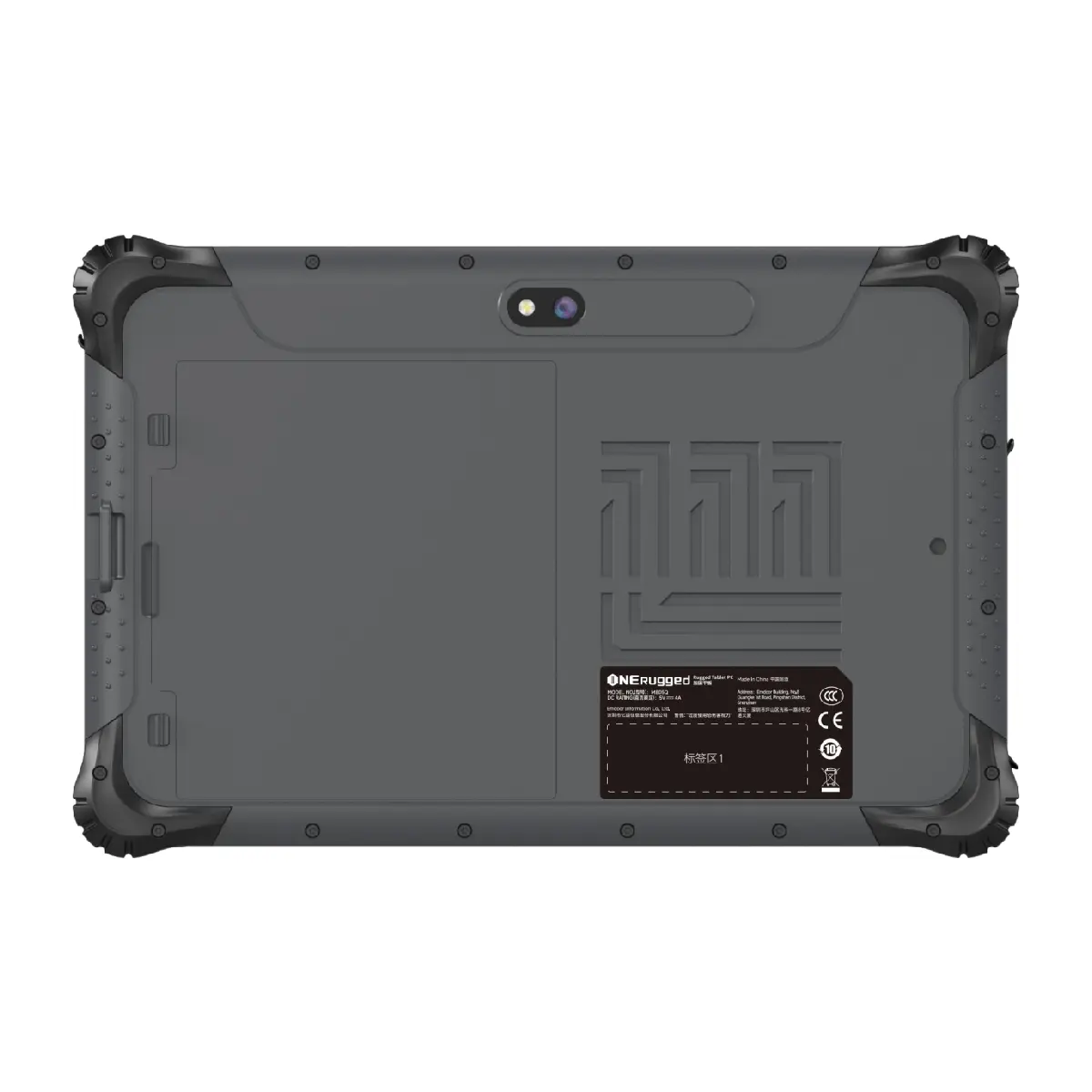

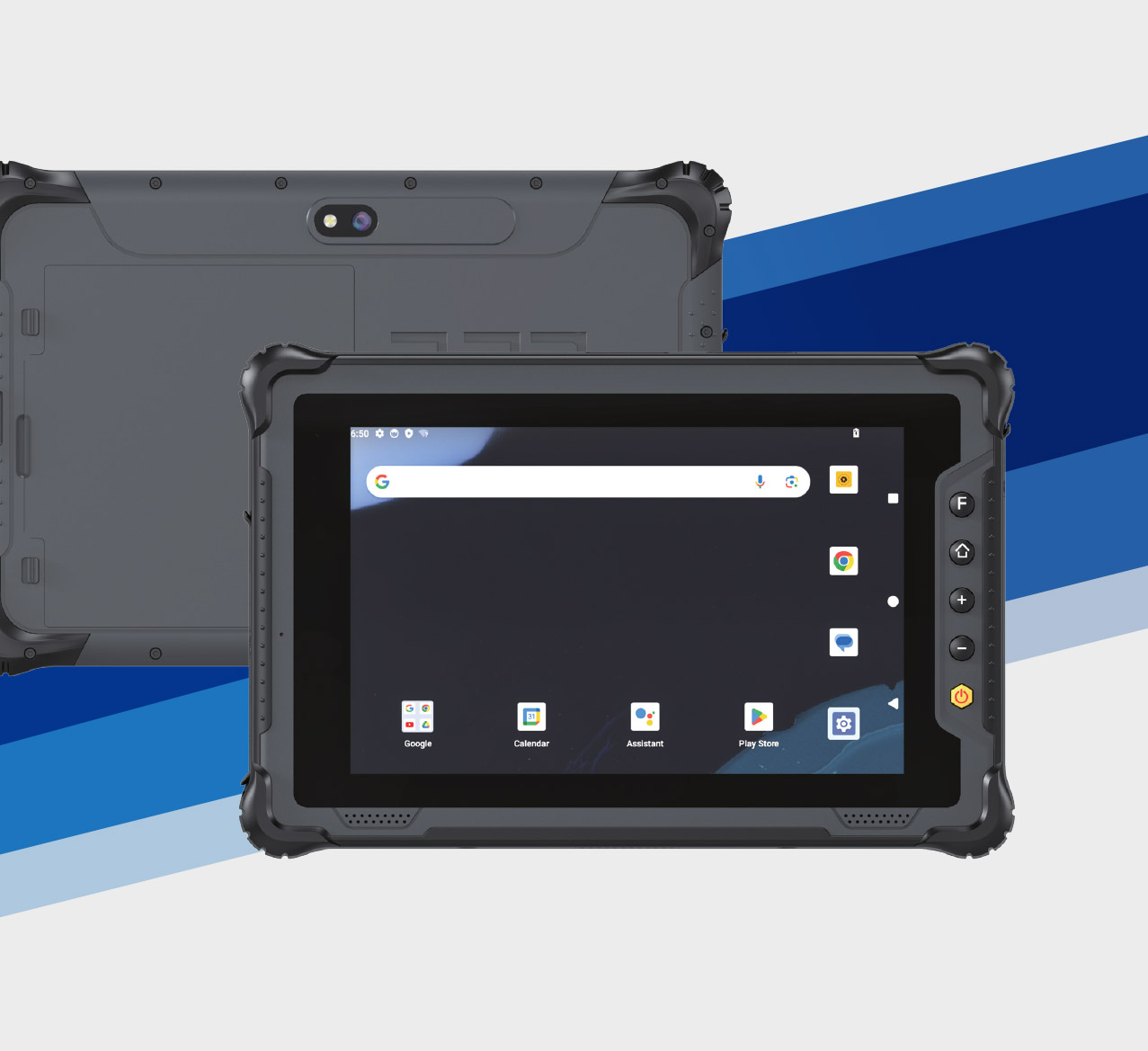

M805Q
Rugged Mobile PC
- CPU: QCM6490
- Android 14/12 GMS
- 5G/WiFi 6E/BT5.2
- Memory: 8GB/4GB+128GB
- 8″ high definition and brightness screen
- GPS+GLONASS+BEIDOU+Galileo+QZSS

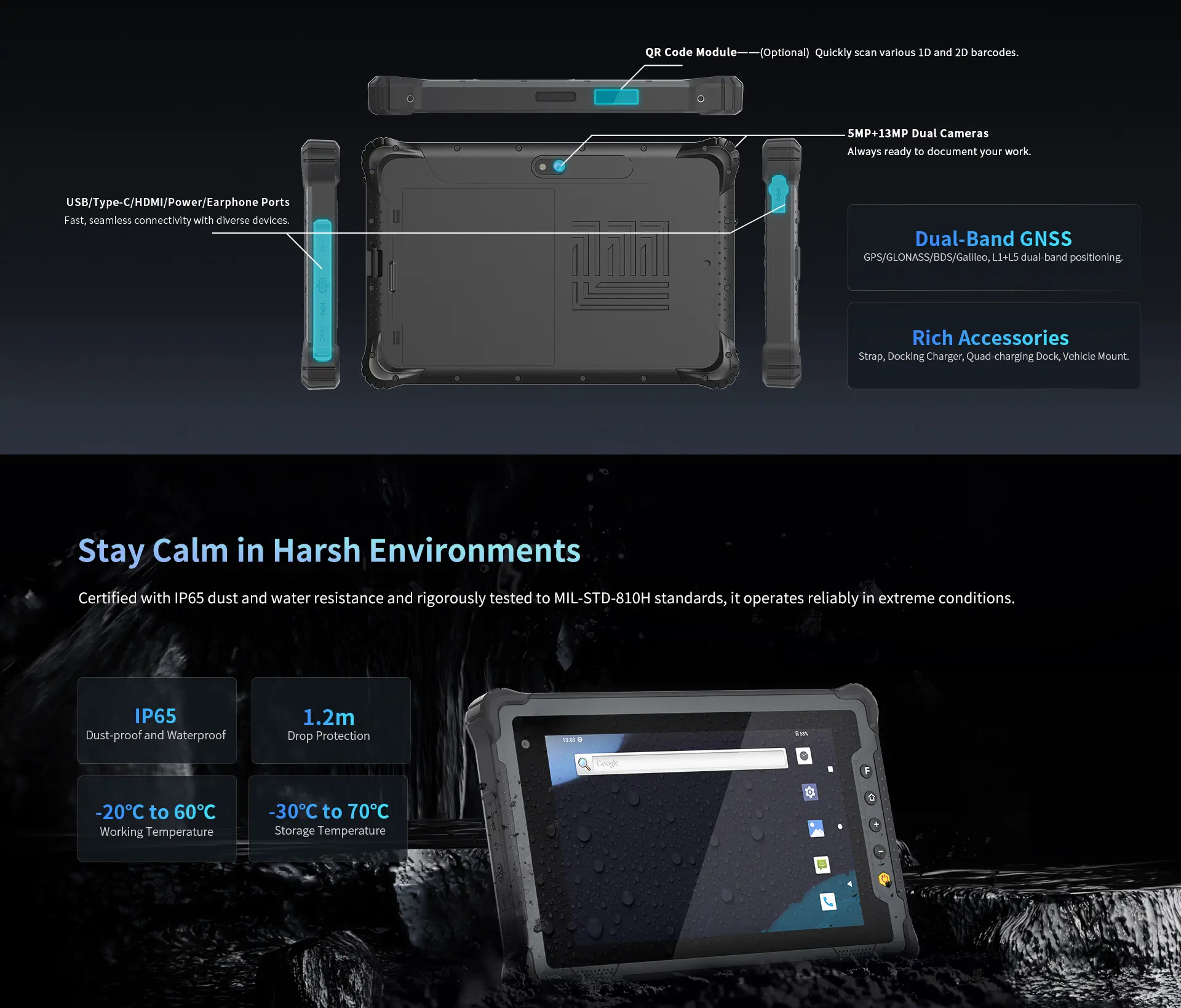

- IP65, MIL-STD-810H
- Battery: 10000mAh/3.8V

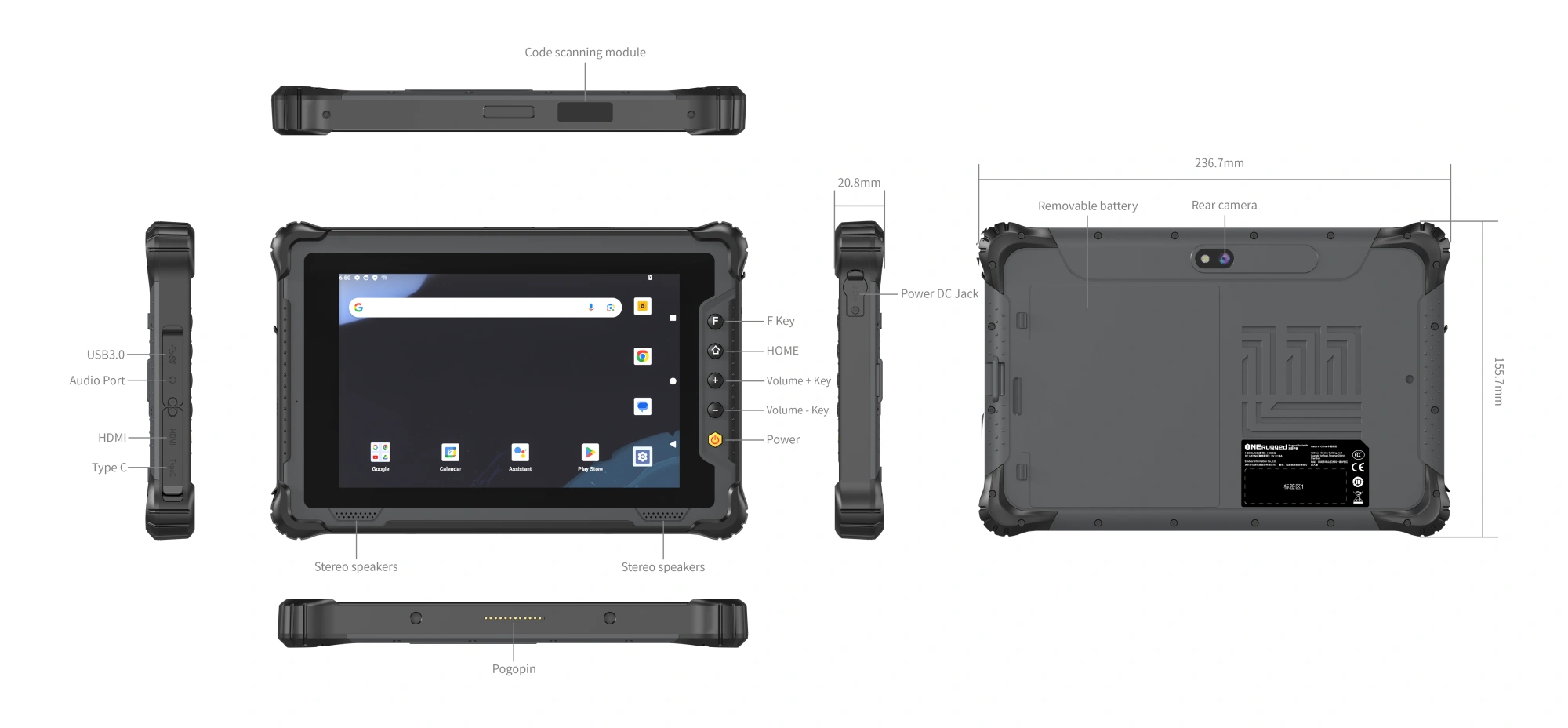

- Dimension/Weight: 236.7×155.7×20.8mm/818g
Specification Parameter
| Durability | • MIL-STD-810H certified • 4ft, 26 drops (each side, edge, and corner) • IP65 certified • +8kV contact discharge, +10kV air discharge |
| Operating System | • Android 14 (GMS) |
| Processor | • Octa-core ARM • 1x A78 (2.7 GHz) + 3x A78 (2.4 GHz) + 4x A55 (1.9 GHz) |
| Graphics | • AdrenoTM 643 |
| Memory | • 8GB LPDDR4x on board |
| Storage | • 128GB eMMC |
| Display | • 8″, FHD (1200×1920), 550 nits • 10-point capacitive touch screen |
| Audio | • Integrated microphone • Integrated 1W speaker x2 • Class K |
| Camera | • 5 buttons (user-definable key x1) |
| Keyboard & Input | • 5 buttons (user-definable key x1) |

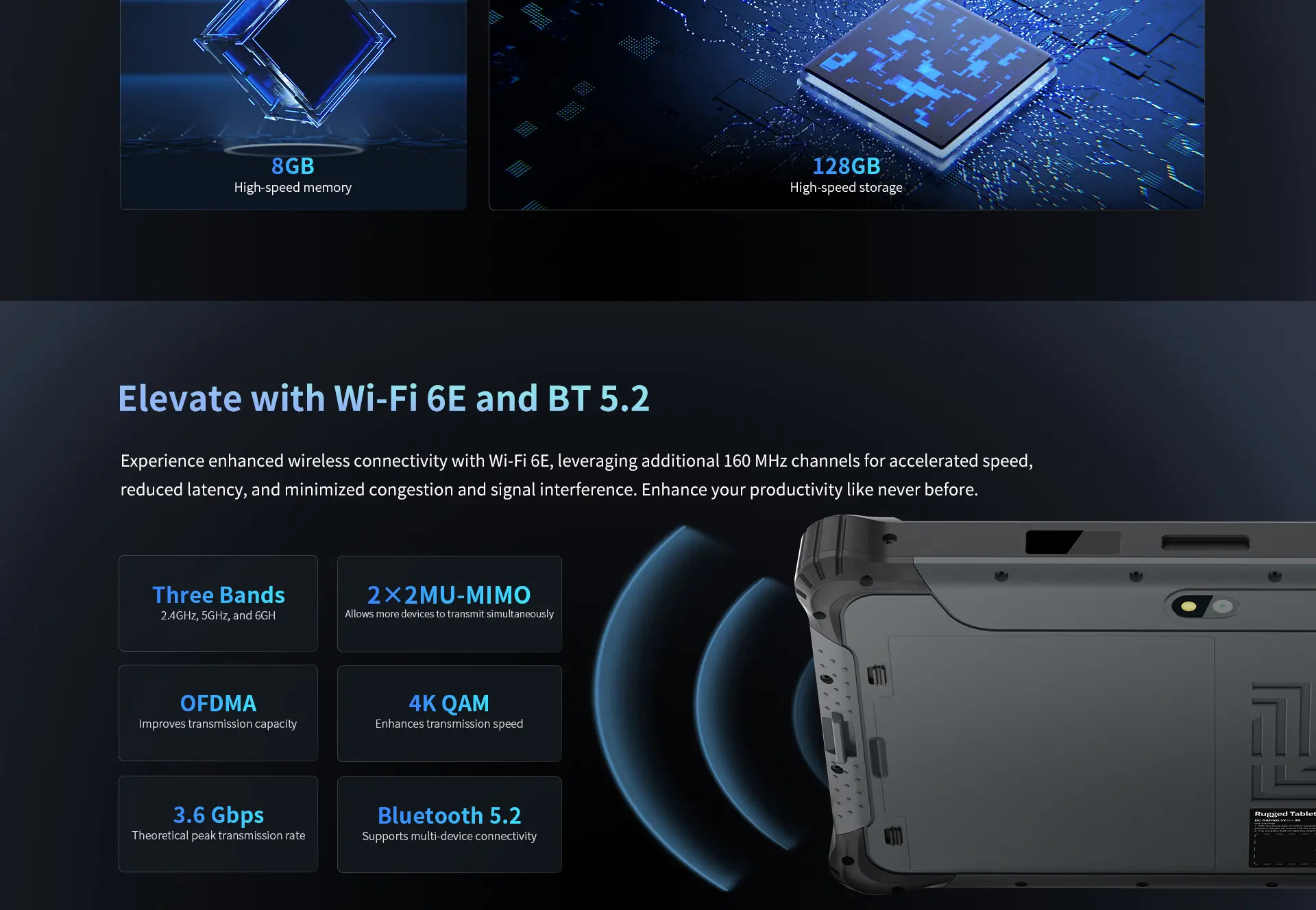

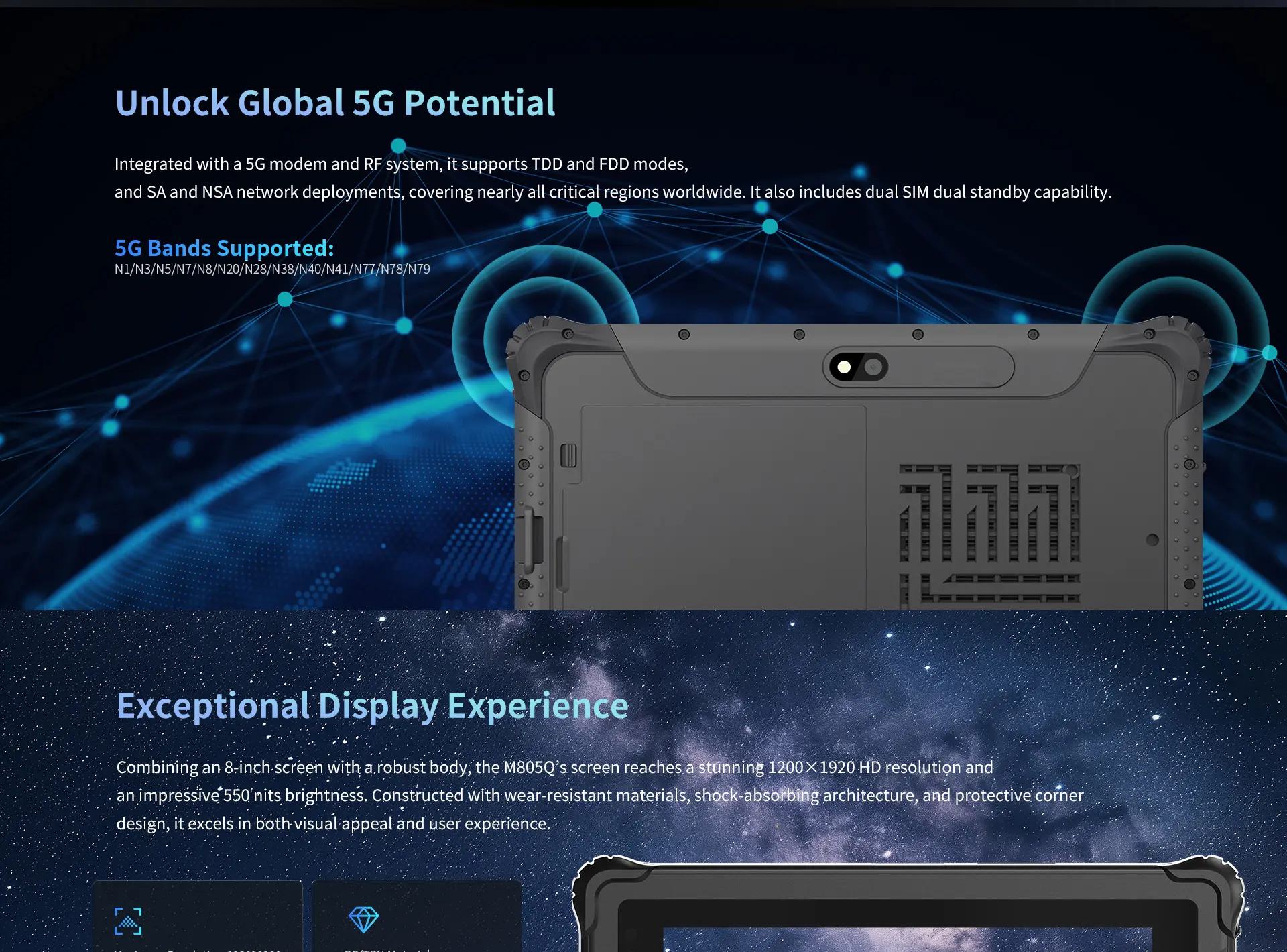

| Network & Connectivity | • Wi-Fi 6E 802.11 a/b/g/n/ac/ax, supports 2×2 MU-MIMO • BluetoothR 5.2 • 5G (SA/NSA): n1/ 3/ 5/ 7/ 8/ 20/ 28/ 38/ 40/ 41/ 77/ 78/ 79 4G: B1/ 2/ 3/ 4/ 5/ 7/ 8/ 12/ 17/ 18/ 19/ 20/ 26/ 28/ 32/ 34/ 38/ 39/ 40/ 41/ 42 3G: B1/ 2/ 4/ 5/ 6/ 8/ 19 2G: B2/3/5/8 • GPS/Glonass/Beidou/Galileo/QZSS module |
| Security | • Optional 1D/2D barcode reader |
| I/O Interface | • Nano-SIM x2/Micro SD x1 + Nano-SIM x1 (2-in-3 card slot) • USB 3.0 (Type-A) x1 • USB (Type-C) x1 (data & PD charing) • 3.5 mm audio jack x1 • HDMI 1.4a mini x1 • 3.5 mm DC in jack x1 • 12-pin Pogo pin x1 (charge & USB) |

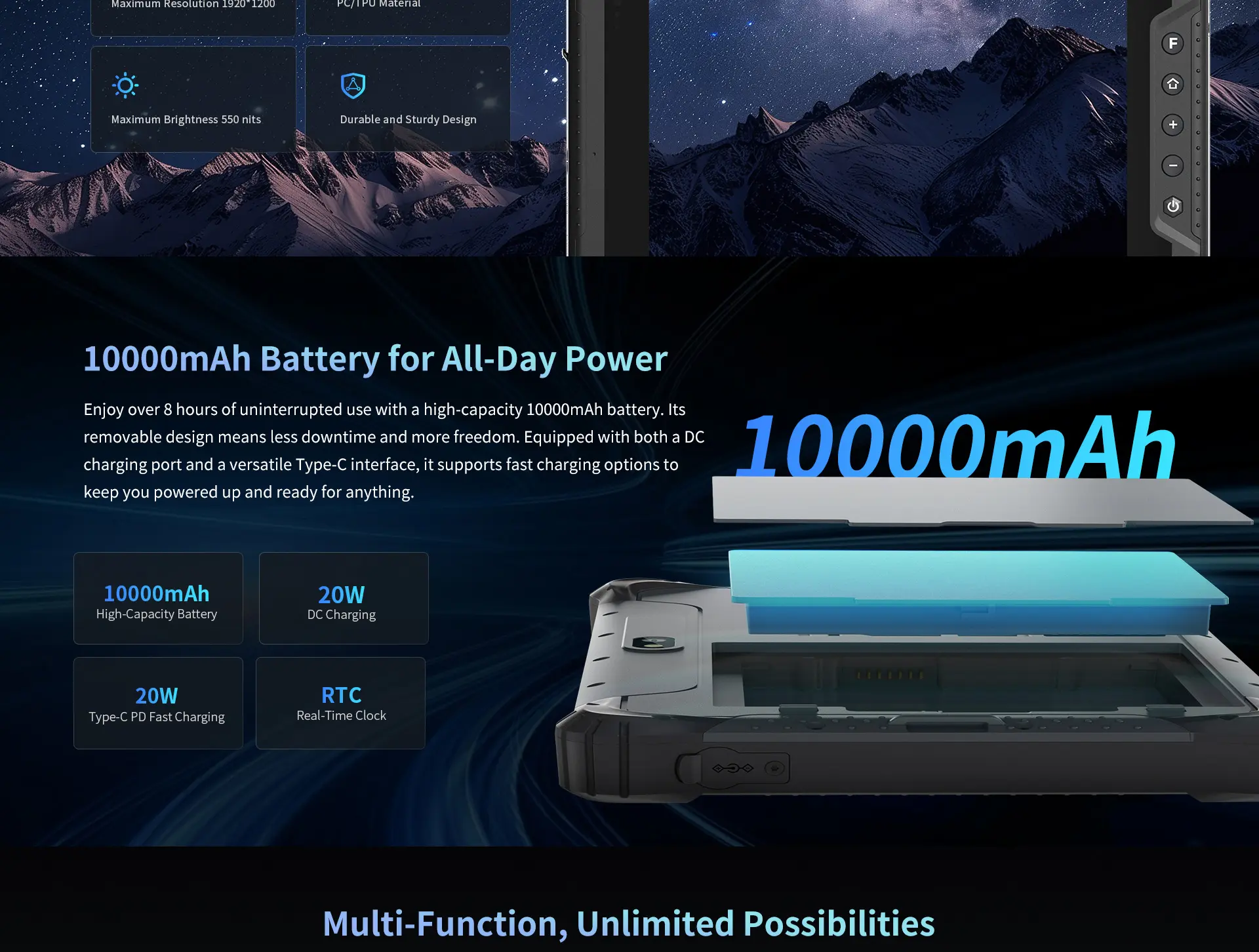

| Battery& Charging | • Li-ion battery, 3.8V, 10000mAh, 8h • RTC 3V/1mAh on board • AC adapter: 100-240V, 50Hz-60Hz, 20W (5V/4A) |
| Environment | • Operating temperature: -20°C to 60°C (-4°F to 140°F) • Storage temperature:-30°C to 70°C (-22°F to 158°F) • Humidity: 95% (non-condensing) |
| Dimension | • 236.7 mm (L) x 155.7 mm (W) x 20.8 mm (H) |
| Weight | • 818g |
| Accessories | • Standard: Adapter, Hand strap • Optional: Docking charger, Vehicle mount, Quad charging dock, Removable battery |
| Warranty | • One-year limited warranty standard |
Enterprise-Grade Rugged Tablet M805Q
Accessories
Standard
Adapter
Hand Strap
Optional
Docking Charger
Vehicle Mount

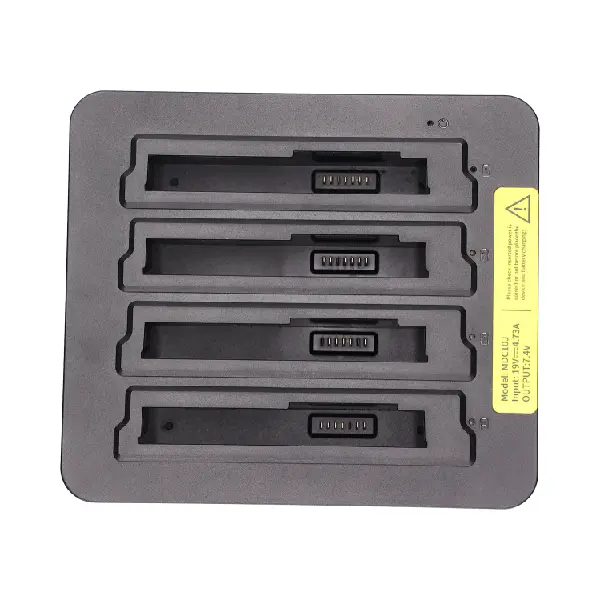

Quad Charging Dock

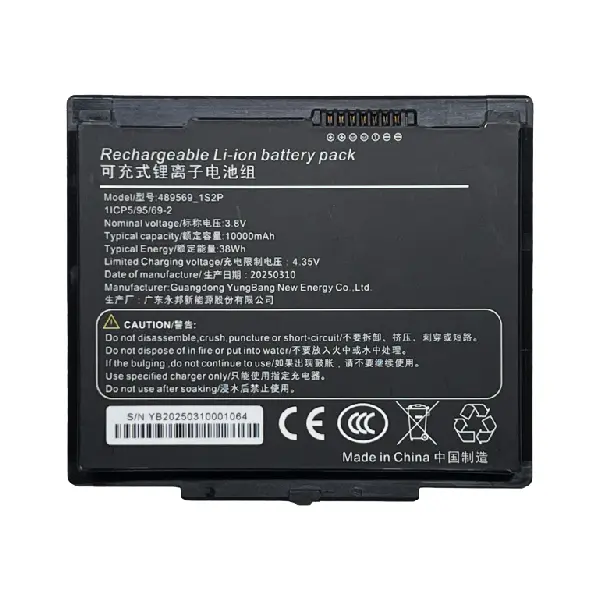

Removable Battery
Download
M805Q
Product Manual Download
